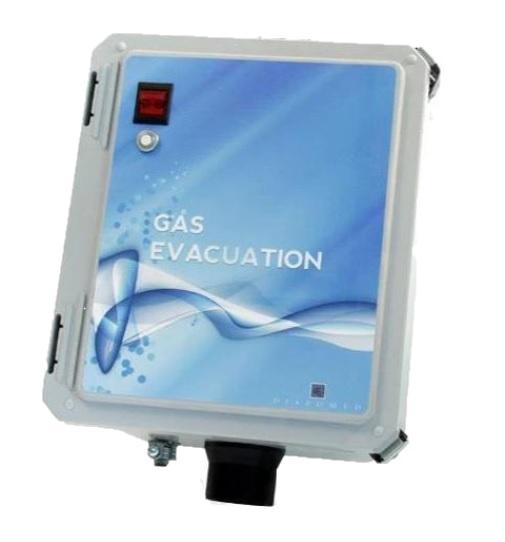

DRE Veterinary Gas Evacuation Ventilator/Blower

Features:

• Can be used to scavenge waste gas for up to 8 anesthesia machines
• Is designed to work with one scavenger interface per anesthesia machine
• Can be installed on the wall or ceiling, or in the attic
• 110 V ; .6 amps
• UL Certified

Compatible with DRE Passive scavenger interface

Specifications:

• Item: PSC Blower
• Wheel Dimensions: Dia. 2 in. / Width 1 in.
• CFM @ 0.000-In. SP12
• CFM @ 0.100-In. SP9
• CFM @ 0.200-In. SP6
• Voltage: 115 Hz: 50/60
• Phase: Single
• Full Load Amps: 0.08
• RPM: 3340
• Bearing Type: Ball
• Motor Type: Permanent Split Capacitor
• Motor Enclosure: Open
• Motor Insulation: Class B
• Thermal Protection: Auto
• Lead Length: 13 in.
• Conduit Box: No
• Ambient Temp.: 104° F
• Max. Inlet Temp: 104° F
• Inlet Dia: 1-7/8 in.
• Outlet Dia: 1-1/4 in.
• Overall Heigh: 3-7/8 in.
• Overall Width: 3-15/16 in.
• Overall Depth: 4 in.
• Wheel Type: Forward Curve
• Drive Type: Direct
• Mounting: All Position
• Housing Finish: Gray Enamel
• Housing Material: Rolled Steel
• Agency Compliance: UL Recognized US and Canada (E47479), CE
• Includes: Discharge Mounting Flange

Documents:

• Why You Need a Scavenger Interface
