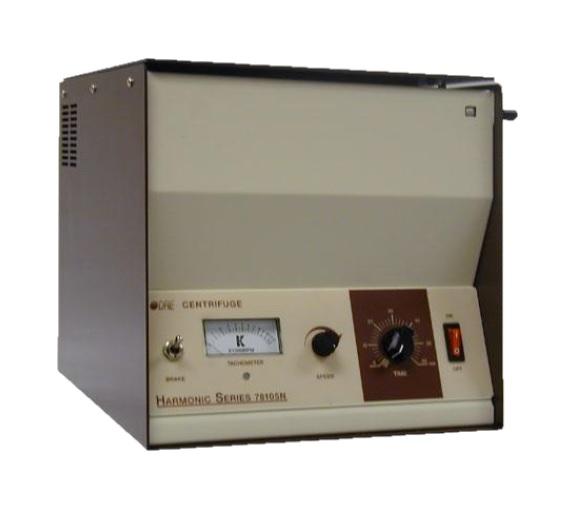

The DRE Universal Centrifuge provides a laboratory test in field of biochemistry, microbe immunity genetics, blood separation and also a general clinic test to hematocrit value (HCT), which defines the percentage of Red blood Cells against the whole body reflecting the status of Red Blood Cells. This centrifuge may be used to detect the percentage of anemia or polycythemia.
Comes standard with mechanical timer, but available with LED digital timer. Contact us for more info or add options!
Features:
- Safety locking latch and inter switch shut out motor automatically when lid is opened during spinning, and also prevents the centrifuge from starting accidentally while loading.
- Operate in a various speed control by turning the control knob from 0 to 12000 rpm for PLC-012 series, while 0 – 3500 rpm for PLC-024, varied with the corresponding types of rotors. Used all purposes sustains to separate substance, remove moisture or simulate gravitational effects.
- Molded stainless steel chamber for PLC-012, PLC-012E and PLC-025 easy for clean. Durable cabinet in constructed of heavy gauge steel with powder coating ensures scratch free and erosion free.
- High efficient motor accelerates to the maximum speed and brakes to complete stop gently in 20 seconds.
- RoHS complaint is also available upon request for extra cost.
- Air intake holds in the cap help keep centrifuge cool during the extended use.

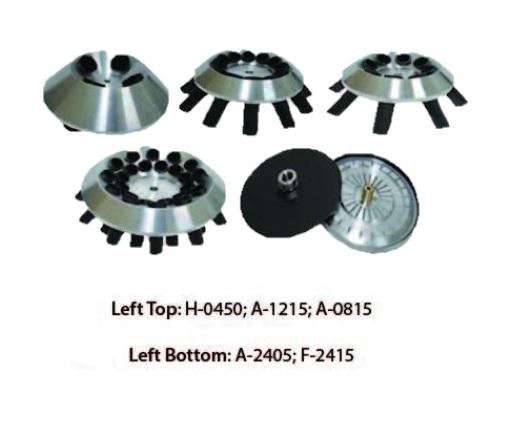

- Various rotors used fitted in one centrifuge to meet your requirements saves your cost.
- Rotor changes are fast and simple with the quick-release rotor nut with an attached hexagon wrench.
- Modular electronic circuit easy for handling and maintenance.
- Press toggle switch and Brake to the complete stop within 15 – 20 seconds.
SPECIFICATIONS
- Overall dimension - 310x360x310mm
- N.W. (kg) - 15.5
- Speed rpm - 0-12000 rpm
- Speed Indicator - Dial Tachmoteter
- Brake - Automatic
- Motor input - Brush 80 W
- Standard accessory - Rotor F-2415 with lid + Reader
- Max RCF x g - 14,490 x at 12000 rpm
- Quality standard - ISO9002, ISO13488, CE marking, GMP, FDA
- Capacity - 24 capillary
- Capillary tubes - I.D. 1.1 - 1.2mm; 2mm + 0.2mm, Length 75mm
- Safety device - Locking latch, automatic shutout when open the lid
- analog tachometer
- mechanical timer
- LED digital timer option: 99 min. Digital
- analog speed control
- safety lid lock
- brake electrical switch
- safety shutout
- stainless steel chamber
