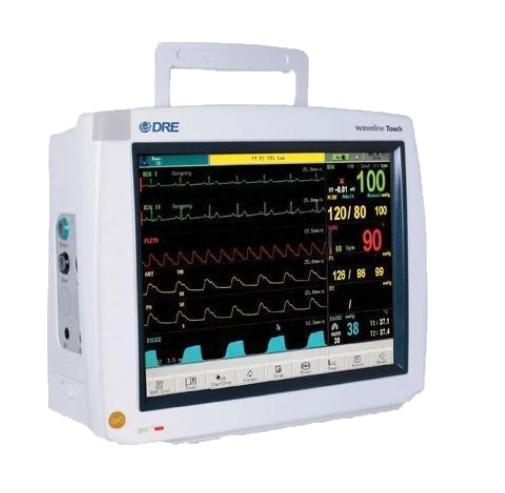

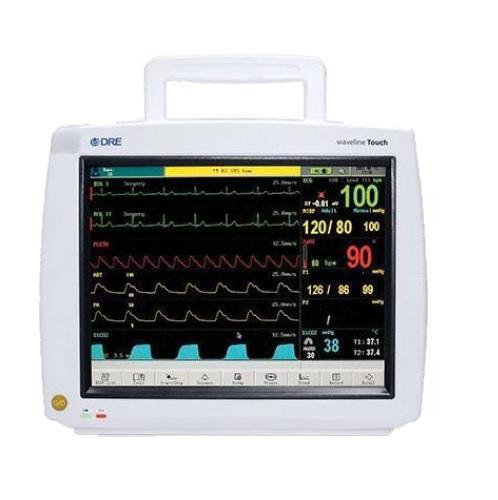

User-friendly touch-screen patient monitor — now with Masimo SET Pulse Oximetry!
Key Features:
- ST segment monitoring and 72 hours trend data analysis
- Built-in battery
-
New for 2015! Masimo SET® Pulse Oximetry — ask your DRE representative for details
- NIBP list and OxyCRG dynamic view display
- Drug dose calculations
- Large font display with 4, 6 and 8 waveforms shown
- Built-in thermal recorder
- Networkable with a central monitoring system via a wireless or wired network
- Compact design convenient for mobile monitoring
- Multi-lingual settings
- Includes veterinary accessories for parameters ordered
Each monitor will automatically include the CO2 and IBP ports. These parameters are listed as options and are NOT standard. Your veterinary or research facility has the ability to upgrade to any of these parameters at a later time without having to send the monitor back! Call a us for further details.
Physical Dimensions
- 21.9” H x 13.2” W x 9.23” D (555 mm H x 335 mm W x 235 mm D)
- Weight - 11bs (5kg)
Application
Power
- Power Source - External AC power or internal battery
- AC Power - 100-240VAC, 50/60Hz, <150VA
- Battery - Rechargeable Lead-Acid; Operating time under the normal condition (1 hour)
- Operating time after the first alarm of low battery (10 min.)
Environmental
- Working Temperature: 5-40 C
- Storage Temperature: 0-65 C
- Working Humidity: 30-75%
- Storage Temeprature: ≤80%
- Operating Altitude: Up to 5,000 meters
- Hyperbaric Pressure - Up to 405.3 kPa
For Full Detailed Specifications including Performance, Filter, RESP, NIBP, Temperature, SPO2, IBP, ETCO2, and documents, please see this page:
SPECIFICATIONS FOR DRE WAVELINE TOUCH VETERINARY MONITOR
