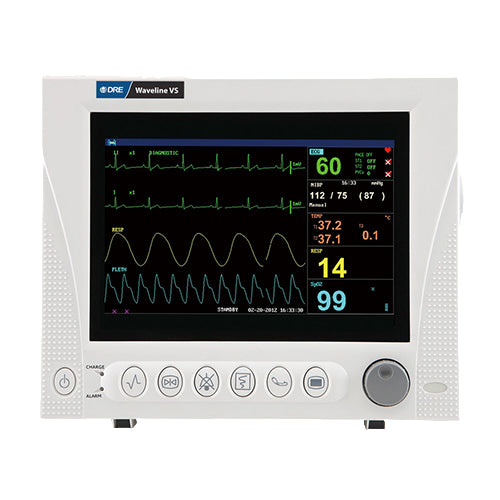

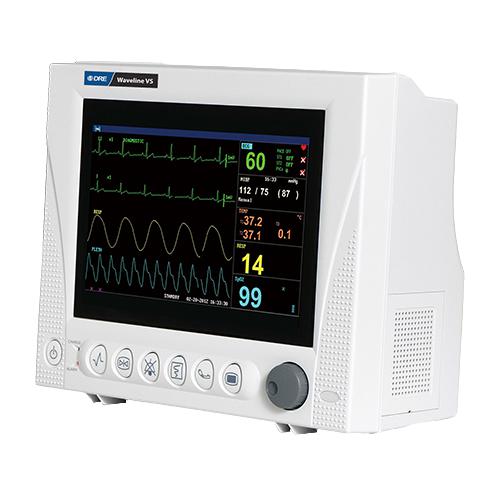

DRE Waveline VS Veterinary Monitor

DRE VeterinarySKU: DR-60180VPRS

Price:
Sale price$2,395.00

Description

Portable multi-parameter monitor suitable for feline, canine, and other animals.

Key Features:

  • High Resolution Color TFT-LCD Screen
  • Defibrillation and Electrosurgical Interference Protection
  • Pitch Tone (Pulse-Tone Modulation)
  • VGA Output (optional)
  • Suitable for feline, canine, and other animals
  • Standard Parameters: 3/5 lead ECG, RESP, SpO2, NIBP, PR, 2-Temp
  • Optional: 2-IBP, Respironics CO2, Thermal Recorder
    • Please ask us about adding these features onto your order

SPECIFICATIONS

Physical Specifications

  • Device Dimension: 320mm (L) x 150mm (W) x 265mm (H) - 12.6 in. (L) x 5.9 in. (W) x 10.4 in. (H)
  • Weight: approx. 5kg (11 lbs)

Display

  • Color TFT-LCD: 10.1”
  • Resolution: 800 x 480
  • Traces Displayed: Up to 8
  • Waveforms Displayed: Up to 11
  • Sweep Speed: 6.25, 12.5, 25, 50 mm/s

ECG

  • Lead Type: 5-lead and 3-lead selectable
  • Gain: Auto, x 0.125, x 0.25, x 0.5, x 1, x 2, x 4
  • Sweep Speed: 6.25, 12.5, 25, 50 mm/s
  • ECG HR Range:15~350 bpm
  • Resolution: 1 bpm
  • Accuracy: 1 bpm or 1% (whichever is greater)
  • Filter:
  • Diagnostic Mode: 0.05~150 Hz
  • Monitoring Mode: 0.5 ~40 Hz
  • Surgical Mode: 1~20 Hz
  • ST-Segment Detection:
  • Measurement Range: -2.0 mV-2.0mV
  • Alarm Range: -2.0 mV -2.0 mV

RESP

  • Method: Trans-thoracic impedance
  • Operation Mode: Auto/Manual
  • RR Measurement Range: 6~150 rpm
  • Resolution: 1 rpm
  • Apnea Alarm Threshold: 10, 15, 20, 25, 30, 35, 40s
  • Band Width: 0.2~2.5 Hz (-3 dB)

SpO2

  • Measurement & Alarm Range: 0-100%
  • Resolution: 1%
  • Accuracy: 2% (70~100%)
  • PR Measurement: 25~350 bpm
  • Resolution: 1 bpm
  • Accuracy: 2 bpm

NIBP

  • Method: Automatic Oscillometric
  • Operation Modes: Manual/Automatic/Continuous
  • Auto Measurement Time Interval: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 240, 480 minutes
  • Measurement Unit: mmHg/kPa
  • Measurement Types: Systolic, Diastolic, Mean, PR
  • Pressure Range:
  • Big Cuff:
  • Systolic: 40~270 mmHg
  • Diastolic: 10~215 mmHg
  • Mean: 20~235 mmHg
  • Medium Cuff:
  • Systolic: 40~200 mmHg
  • Diastolic: 10~150 mmHg
  • Mean: 20~165 mmHg
  • Small Cuff:
  • Systolic: 40~135 mmHg
  • Diastolic: 10~100 mmHg
  • Mean: 20~110 mmHg
  • Resolution: 1 mmHg
  • Accuracy: 3 bpm or 3.5%, whichever is greater
  • PR NIBP Measurement Range: 40~240 bpm
  • Resolution: 1 bpm

IBP (2 Channels, Optional)

  • Measurement Range: -50~300 mmHg
  • Resolution: 1 mmHg
  • Accuracy: 2% or 1 mmHg(whichever is greater)
  • Sensitivity: 5 V/V/mmHg
  • Impedance Range: 300-3000 Ω

Philips Respironics CO2 (Optional)

  • Type: Sidestream/Mainstream
  • Range: 0-150 mmHg
  • Accuracy:
  • 2 mmHG 0-140 mmHg
  • 5% 41-70 mmHg
  • 8% 71-100 mmHg
  • 10% 101-150 mmHg
  • AwRR Accuracy: 1 rpm

CO2 (Optional) Sidestream

  • Range: 0-13% (0-100 mmHg)
  • Accuracy:
  • 2 mmHg<5.0% CO2
  • <6% of the reading>5.0% CO2
  • AwRR Accuracy: 1% or 1 rpm (whichever is greater)
  • Sample Flow Rate: 50-250 ml/min. adjustable

Temperature (2 Channels, 1 probe by default)

  • Measurement/Alarm Range: 0-50 C (32-122 F)
  • Resolution: 0.1 C
  • Accuracy: 0.1 C (without probe)
  • Channel: Dual-channel. Provide T1; T2; T

Thermal Recorder (Optional)

  • Print Speed: 25, 50 mm/s

Power Supply

  • AC Power: 100-240 V AC, 50/60 Hz
  • Battery: 14.8 V Rechargeable Li-Ion Battery
