Immediate capnography at your fingertips
Immediate results — EMMA requires virtually no warm-up time, with full accuracy in 15 seconds to measure end-tidal carbon dioxide (EtCO2) and respiration rate (RR)
Continuous capnogram allows for confirmation of endotracheal tube placement, enables clinicians to assess the depth and effectiveness of compressions, and recognize return of spontaneous circulation (ROSC)

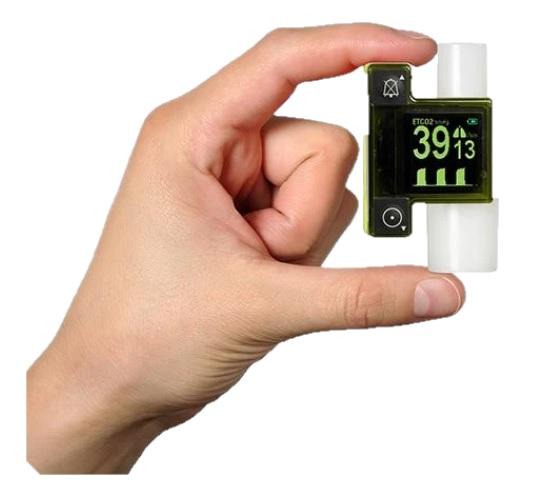

Small, portable capnograph — lightweight design fits in the palm of your hand for unmatched mobility and convenience during short-term EtCO2 monitoring of adult, pediatric, and infant patients
Flexible use at multiple points of care, including pre-hospital, emergency medicine, operating room, intensive care unit, and long-term acute care
Helps clinicians assess the effectiveness of CPR and guide ventilation, allowing them to make adjustments in the course of treatment, breath by breath
Rugged, water-resistant design for reliable operation in challenging environments
Easy to maintain — no routine calibration required
Key Features:
- Clear, continuous capnogram of carbon dioxide values
- Simple, easy-to-use interface for quick set-up and one-touch programming
- Audible and visual alarm system for No Adapter, Clogged Adapter, No Breath (Apnea), Low Battery and adjustable High and Low EtCO2 alarm
- Long battery life — up to 10 hours of normal use with two standard AAA lithium batteries
SPECIFICATIONS
Ranges
- CO2: 0-99 mmHg, 0-9.9 kPa
- RR: 3-150 bpm
Accuracy (standard conditions)
- CO2: 0-40 mmHg +2 mmHg; 41-99 mmHg 6% of reading 0-5.3 kPa +0.3 kPa; 5.4-9.9 kPa 6% of reading
- RR: +1 bpm
Batteries
- Type: 2 (two) AAA Cell Alkaline or Lithium
- Battery life: 6 hours (Alkaline); 10 hours (Lithium)
Environmental
- Operating temperature: -5 to 50º C (23 to 122º F)
- Operating atmospheric pressure: 70 to 120 kPa
- Operating humidity: 10-95%, non-condensing
- Storage temperature: -30 to 70º C (-22 to 158º F)
- Storage atmospheric pressure: 50 to 120 kPa
Physical Characteristics
- Dimensions: 2.1 x 1.5 x 1.5” (5.2 x 3.9 x 3.9 cm)
- Weight: 2.1 oz (59.5 g) (with alkaline batteries)
Adapter Information
- Dead space adult/pediatric: 6 ml
- Dead space infant: 1 ml
