Hale Pet Door for Walls | Secure In Wall Mount Dog Door & Cat Door

Hale Pet DoorSKU: HL-212BA

Price:
Sale price$425.00

Description

Hale Pet Door for Walls: In-Wall Dog Door Installation for Small, Medium, Large and even Extra Large Dogs and Cats.

HL-211AA

All Wall Mount pet doors by Hale are ultra high-end products, engineered with painstaking attention to detail and the highest quality materials. It's just not worth it to waste money on cheap pet doors that use poor quality materials because they need to be replaced too frequently.

A Hale Pet Door lasts owners many, many years even with intense use. Hale also helps owners save on energy bills compared to other pet doors, as Hale doors have flaps with the highest rating for insulation and sealing properties.This is an investment that your pet (and your wallet) will appreciate for years to come.

Need help finding the best size? Call us at 1-855-PET-PRO1 or write us at [email protected] and we'll help you find the perfect size wall door for your dog(s) and cat(s)!

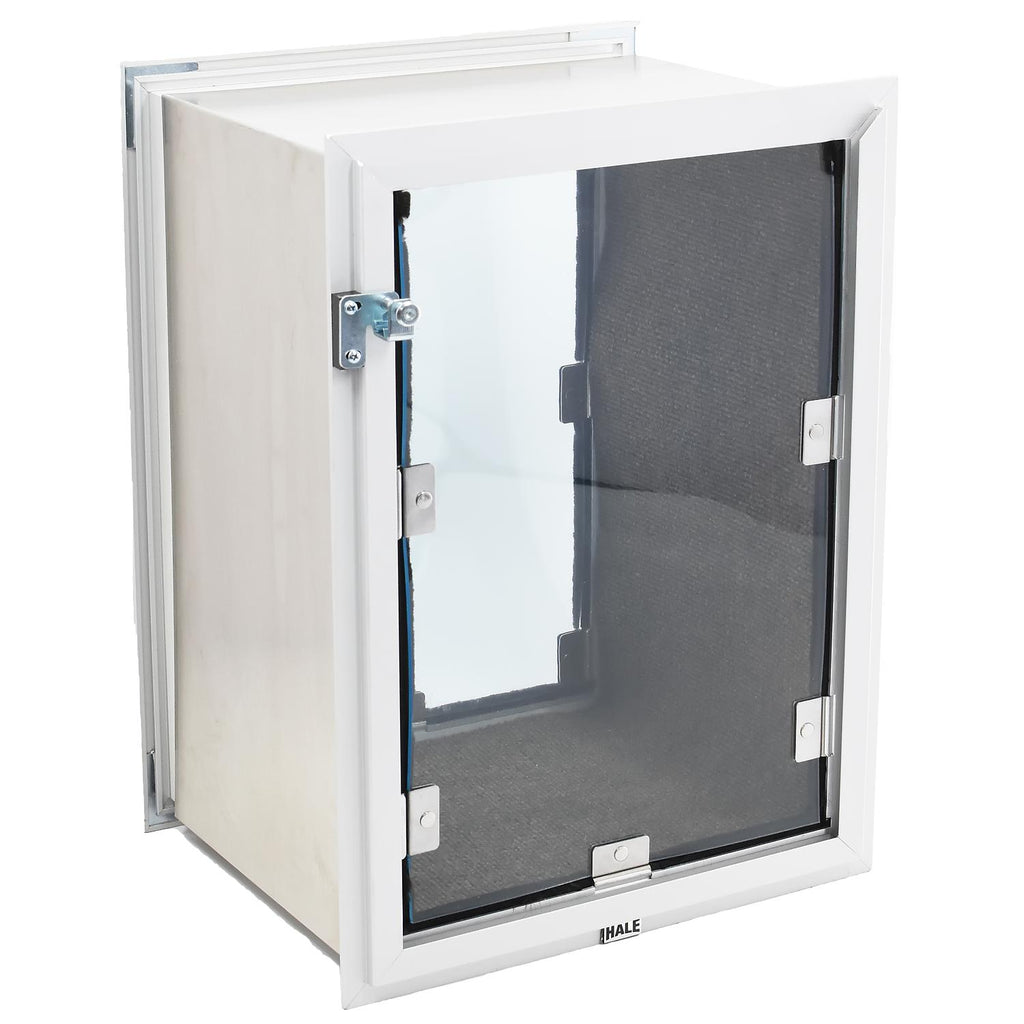

Hale Wall Model Pet Door

This model can only be installed through a WALL. For door installation Hale Pet Doors, see our Hale Door Mounted Pet Door.

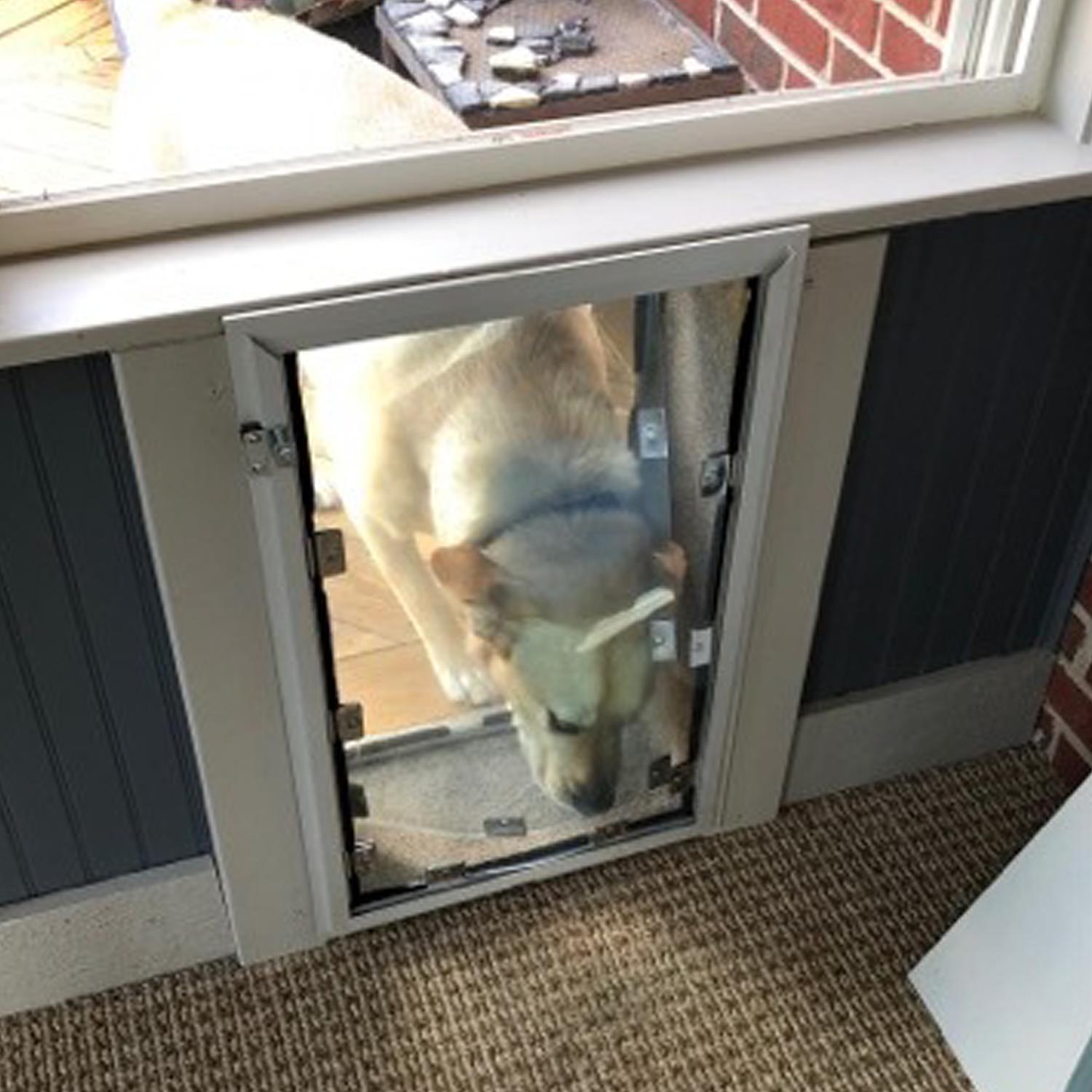

This Wall Mounted pet door is the best selling door from Hale, and its self-framing and self-supporting design is one of the easiest to install on your own.

It was designed to be installed through almost any type of wall, interior or exterior. Just cut the tunnel to the wall thickness, slip the outside frame into the tunnel and attach with provided screws.

A 10 inch tunnel comes standard with all Hale wall mount pet doors, which will work for any wall that is between 2 and 10 inches thick. The oversize option accommodates walls up to 16 inches thick.

Under each tunnel Hale installs flashing to contain and divert any water that may find its way through the tunnel. Each tunnel is lined on the sides and bottom with mildew- and mold-resistant olefin carpet. The carpet prevents the tunnel from getting too hot or too cold for your pet to walk on and also helps prevent additional heat or light from entering your home. The carpet acts like a welcome mat by wiping your dog's paws so as he or she walks through the tunnel. The carpet is easily cleaned with a vacuum hose attachment or any standard household cleaner.

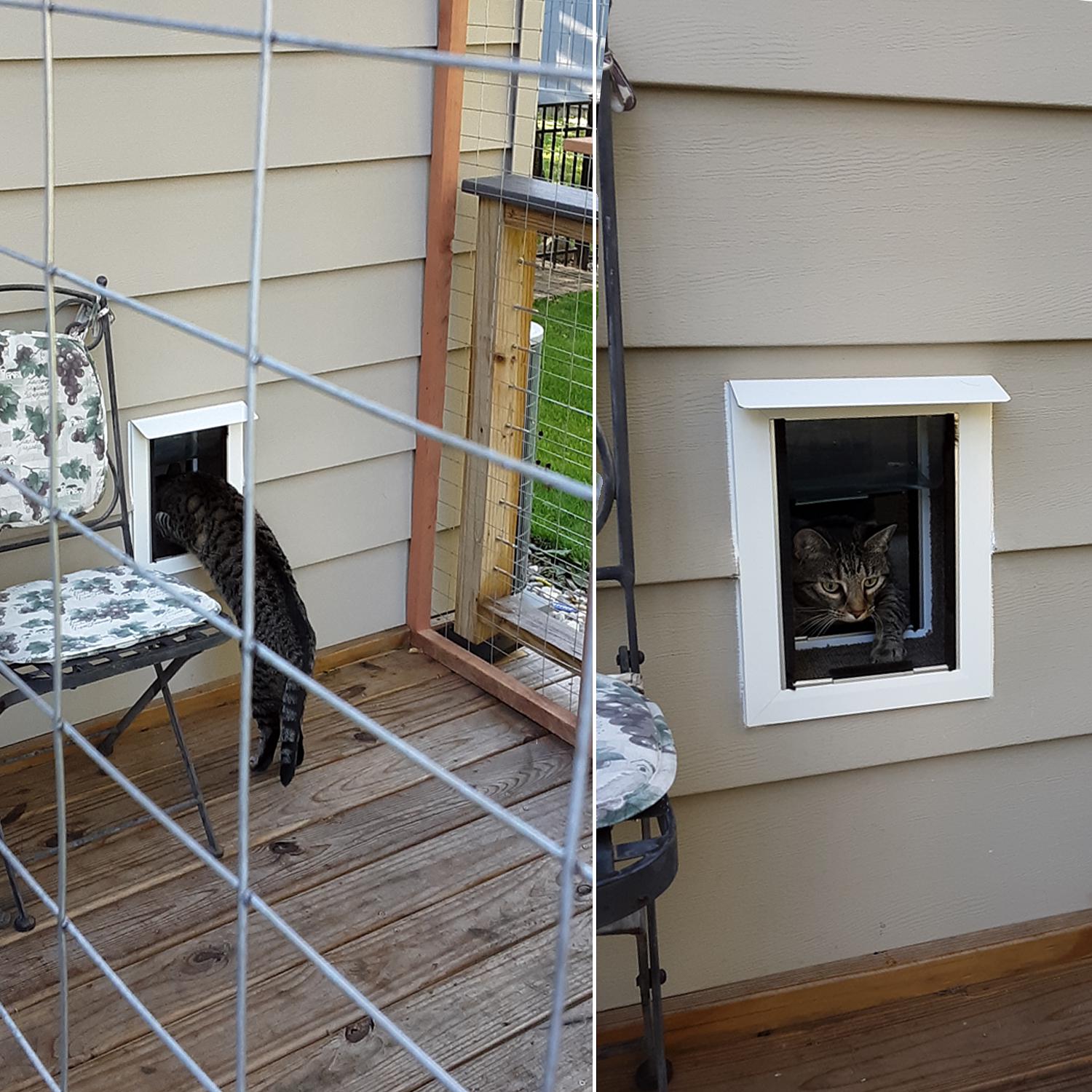

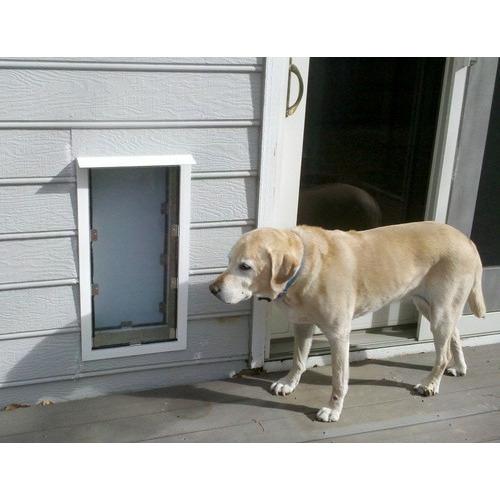

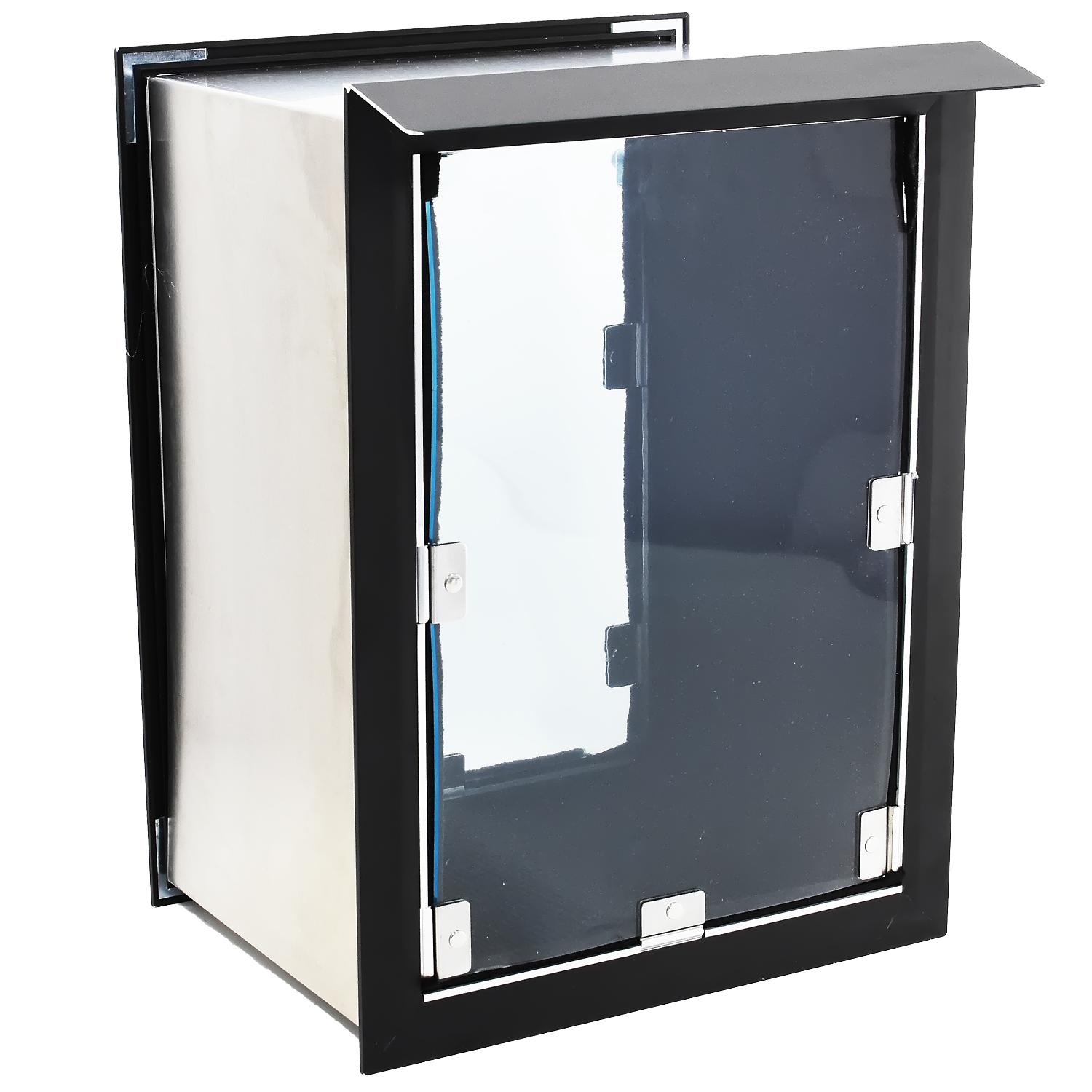

In addition, all Wall Mounted models come with a FREE Raincap. This awning attaches to the top of the outside pet door frame and helps to prevent any water from entering into the pet door and so prevents your house from getting wet! The Raincap works as a part of Hale Pet Door's water containment and diversion system to help prevent moisture intrusion into your pet door!

*Note on Optional Exterior Security Cover: Choosing this option makes your pet door a "custom" door for return policy purposes and entitles you to 50% credit towards the purchase of a new door should you need to return your door for any reason.

Why Hale Pet Doors for Walls are the Best

  • Strong, Durable, and Long Lasting - Hale Pet Doors will not break on you, unlike cheaper doors.  The frames are made of extruded aluminum with steel reinforced corners, and are far superior to plastic or pressed metal frames. The door Flaps are made of PVC vinyl, stronger and longer lasting than most other commonly used materials.
  • Maximum Energy Efficiency Saves Money - The weather resistant Flaps combined with ultra strong alnico magnets and nylon pile weather-stripping provide great protection from the wind and weather. The double flap option also provides additional insulation in even the harshest of climates.
  • Secures Your Home - All doors include a shock, impact, and fire resistant King Starboard Polymer security cover to keep out intruders and pests alike! Covers are secured with a reliably strong steel pin lock attached to the frame itself (unlike many other pet doors) preventing the lock from being opened from the outside.
  • Keeps Your House and Door Dry and Clean - The included wall tunnel, rain cap, rain resistant cover and flap, and caulking all work together to prevent any your home from water intrusion. They also help protect from wind, dust, debris, and the elements
  • Easy, Worry Free Support - Experienced technicians are available by phone for installation or technical consultation. Also, all Hale Pet Doors include a comprehensive 5 year, no fault warranty!
  • Made in the USA - All Hale Pet Doors are manufactured in the United States with the greatest attention to detail.

Hale Wall Mounted Pet Door Option Details

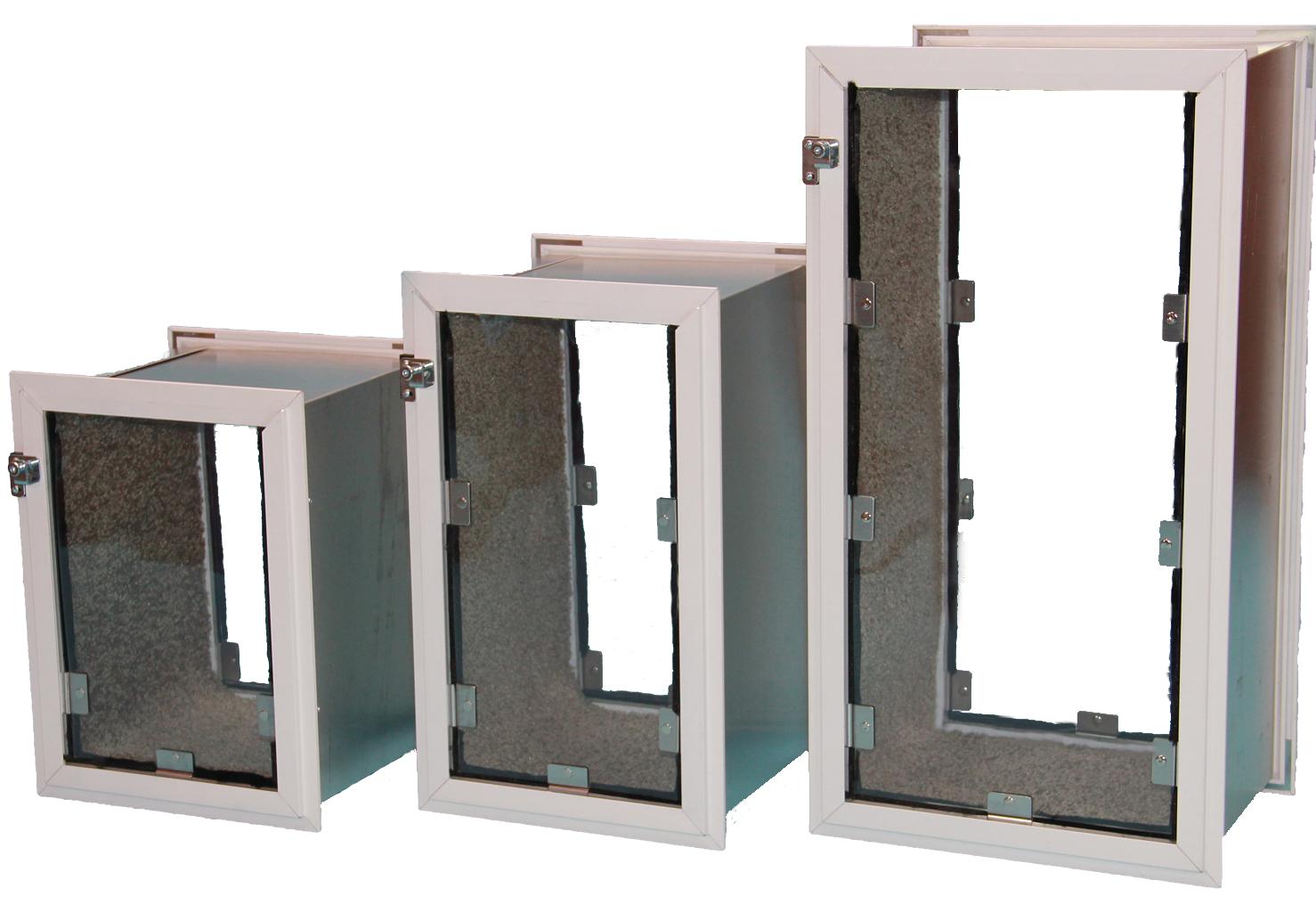

  • Flap Size: 12 standard sizes available from small to giant. Use the Size Chart above, or click on the Sizing & Measuring tab for more details.
  • Flap Type: Double Flap (one flap on each door surface) is standard and recommended as it provides improved insulation and energy efficiency. Single Flap can be used in situations where insulation is not needed (i.e. installing in an interior door)
    • Optional Training Flap - Additional flap, use for a limited time when pet is timid and getting used to the pet door.

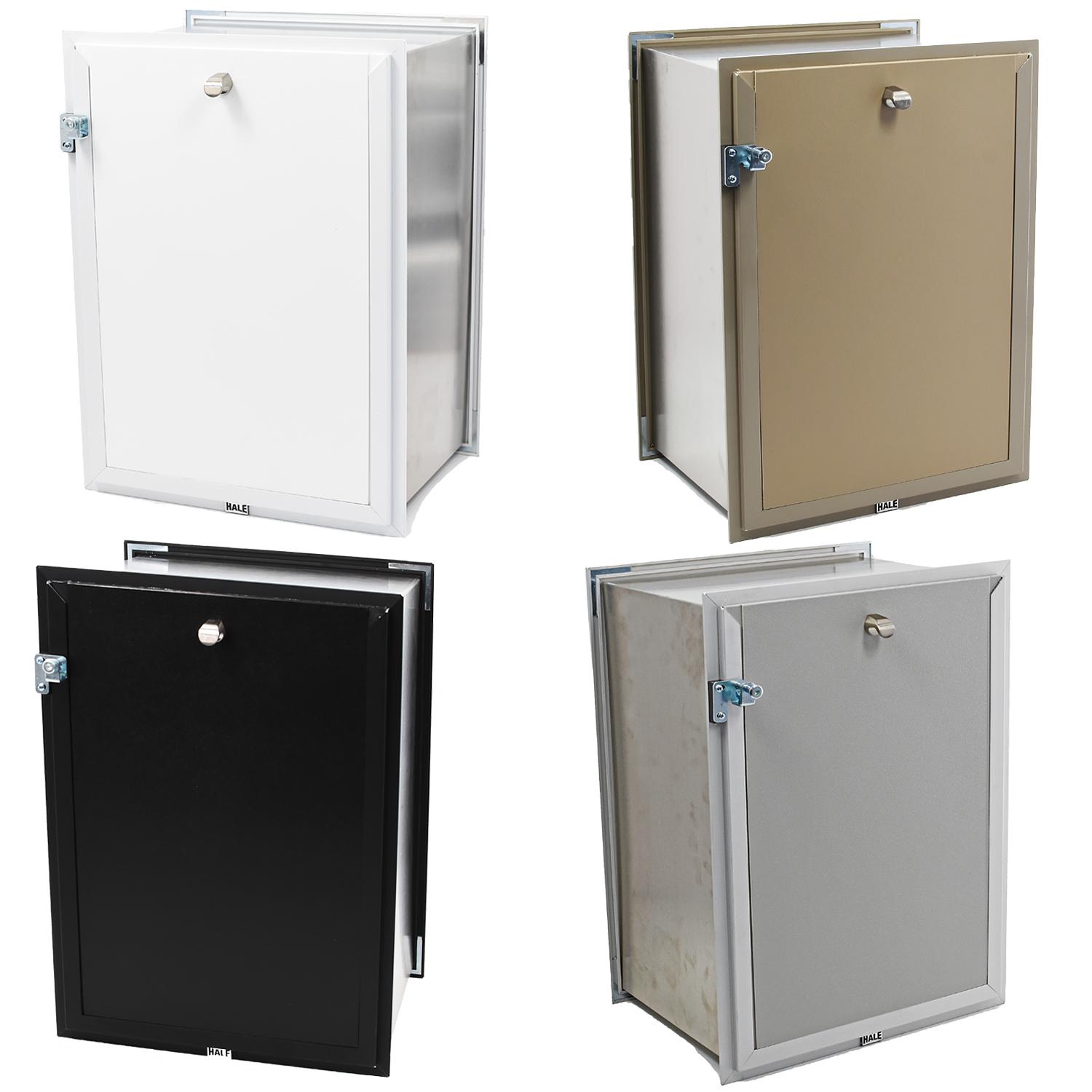

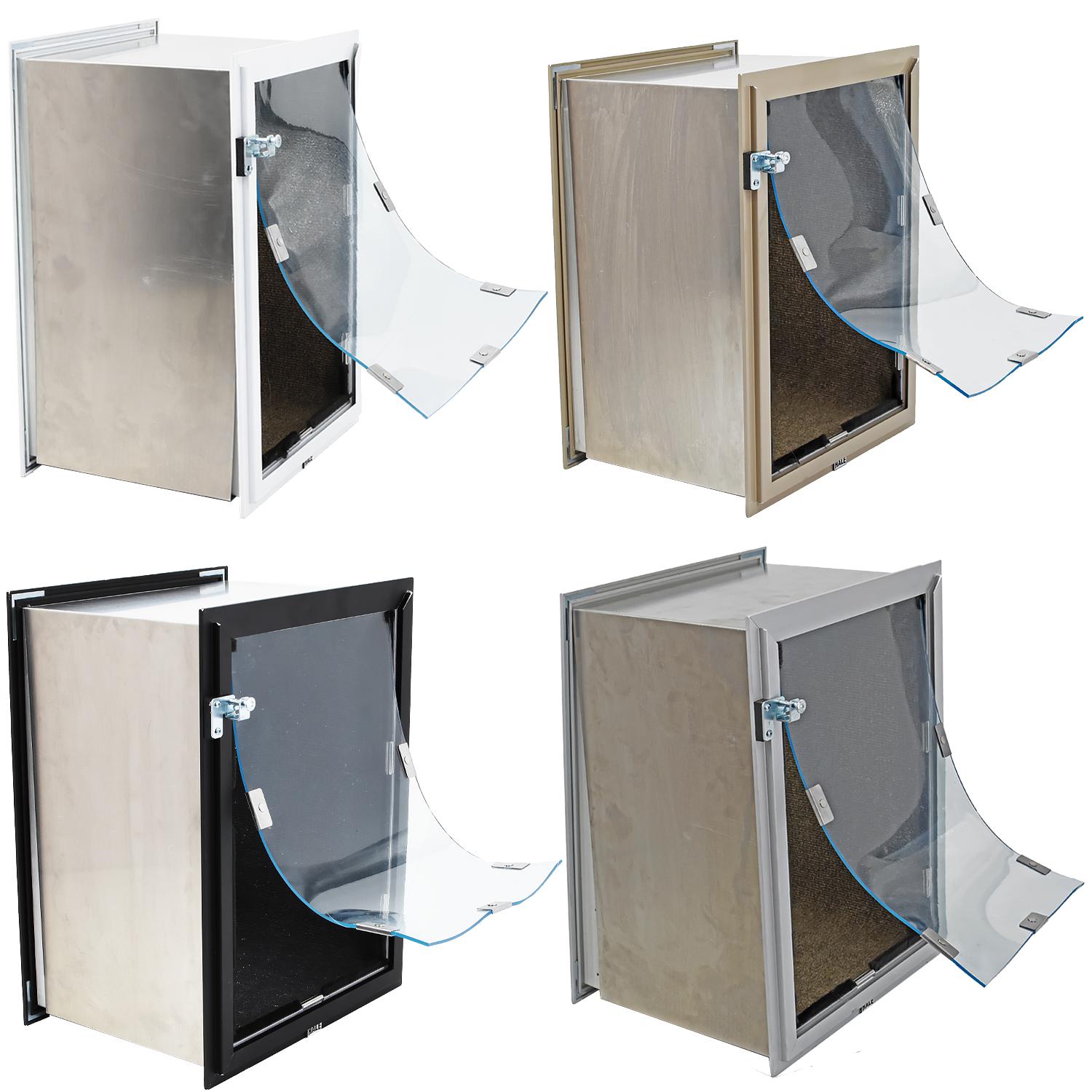

  • Frame Color: Available in four color choices. Note, the Security Cover color will be a complimentary color, very close to the color of the frame.
    • Beige - hard coat paint, looks like coffee with a couple of creamers added.
    • Brushed Aluminum - anodized metal, satin nickel color, looks like the bottom of a Coke can.
    • Dark Bronze - anodized metal, chocolate brown, looks almost black in dimmer light.
    • White - white hard coat paint.
    • Mixed Frame Color - In the shopping cart Special Instructions section, just write in the color you would like for the Exterior Frame, the color for the Interior Frame.

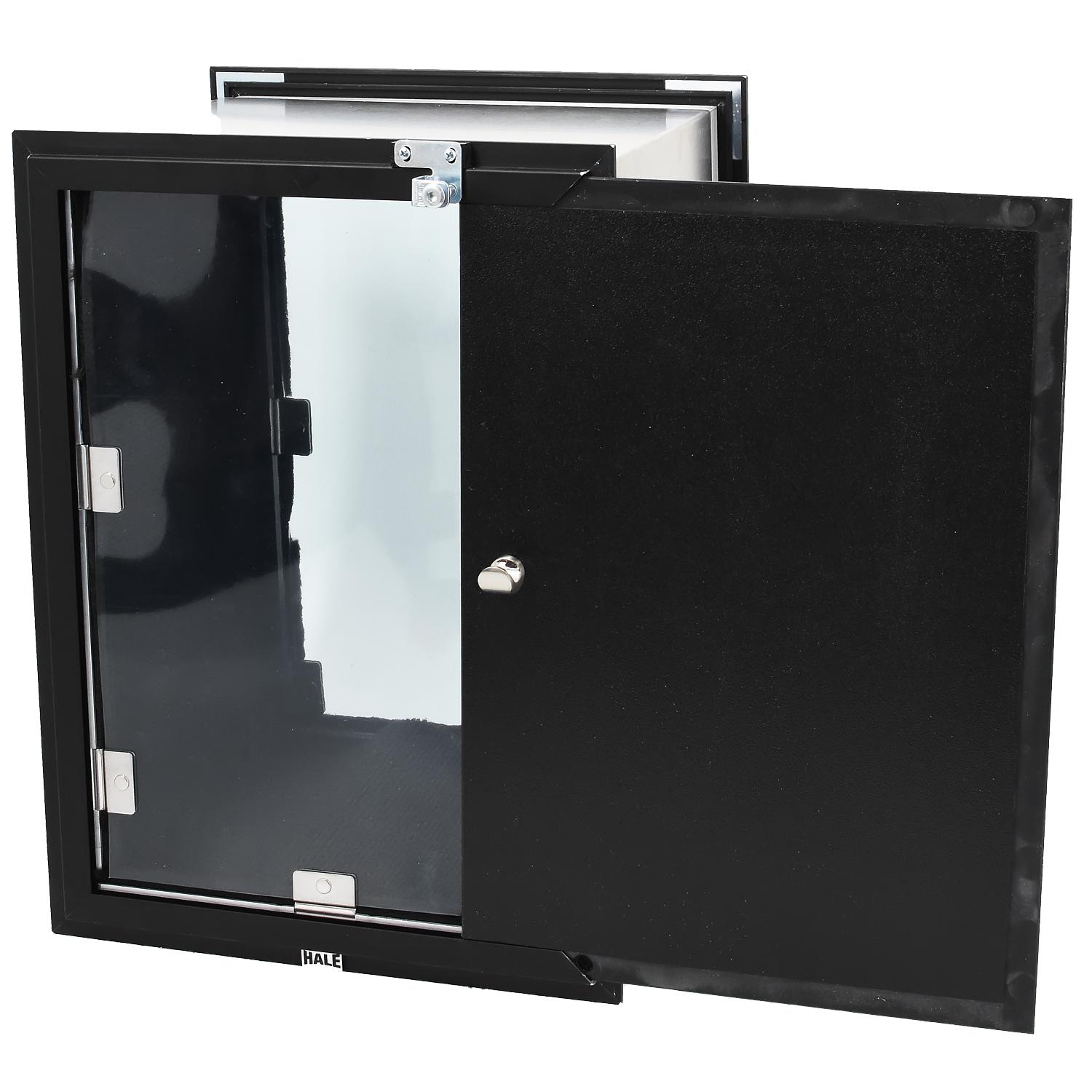

  • Security Cover Load Direction: Standard is top loading. Also available in side loading model if there is an obstruction above door. A right side load will have the security cover slide to from the right of the door pet door, when looking at it from the inside. A left side load will open to the left of the pet door.
  • Tunnel Length: The Wall Model comes with a standard 10" tunnel to fit walls between 2" and 10" in size. An optional oversize 16" tunnel can be ordered for deeper walls.
  • Optional Secondary Exterior Cover: Choose this option if you would like a second cover on the exterior of your pet door.
    IMPORTANT NOTE: Choosing this option makes your pet door a "custom" door for return policy purposes and entitles you to 50% credit towards the purchase of a new door should you need to return your door for any reason.
    • Secondary Exterior Cover Load Direction: Load direction is determined by looking at the door. If you want both covers to load from the same side of the door, you would need to order one as "left side load" and the other as "right side load". Also remember if you plan on using the optional raincap, you must specify a side load direction for the exterior cover.

Hale Pet Door Size Chart - A Size to Fit Any Animal and Application

  • To get the ideal flap size for your pet, use the folowing procedure:
  • Cut a hole in a piece of cardboard that is the size of the flap you are interested in
  • Coax your pet through (use treats if necessary)
  • Place the cardboard in the opening of a door so they have to walk through the hole to get to the reward!
  • See what flap size and step over height (height from floor to bottom of where the flap will be installed) works best for your pet.
  • Click on the Sizing & Measuring tab for even more details on how to measure the right size for your pet.
Model Size Flap Opening Rough Opening Tip to Tip Pet Weight Pet Shoulder Height Breed Examples
SMALL
A Small 5 1/2" x 7 1/2" 7 3/8" x 9 3/8" 8 3/8" x 10 3/8" Very small cats up to 8 lbs. Up to 7" Cats (very small only)
B Small Medium 6 1/2" x 9 1/2" 8 1/2" x 11 1/2" 9 9/16" x 12 9/16" Most cats, small dogs 6-12 lbs. 9"-13" Cats, Chihuahua, Dachshund, Mini Poodle
C Tall Small Medium 6 1/2" x 12 1/2" 8 1/2" x 14 1/2" 9 9/16" x 15 3/8" Dogs 12-25 lbs 12"-15" Mini Pinscher, Maltese
MEDIUM
D Medium 8 1/2" x 12 1/2" 10 1/2" x 14 1/2" 11 9/16" x 15 3/8" Dogs 10-35 lbs. 12"-15" Terriers, Pug, Corgi, Shiba Inu
E Tall Medium 8 1/2" x 16" 10 1/2" x 18" 11 9/16" x 19 1/16" Tall Dogs 30-45 lbs. 15"-20" Cocker Spaniel, Sheltie, Beagle
LARGE
F Large 11" x 16" 13" x 18" 14 1/16" x 19 1/16" Dogs 40-55 lbs. 15"-20" Basset, Chow, Keeshond, Husky
G Tall Large 11" x 19 1/2" 13" x 21 5/8" 14 1/16" x 22 9/16" Taller Dogs 50-95 lbs. 21"-24" German Shepherd, Labrador Retriever
H Tall Large Plus 11" x 23 1/2" 13" x 25 5/8" 14 1/16" x 26 9/16" Tall slender dogs to 110 lbs. 25"-27" Standard Poodle, Irish Setter, Greyhound
I Extra Tall Large 11" x 27 1/2" 13" x 29 5/8" 14 1/16" x 30 9/16" Very tall, slender dogs to 120 lbs. 24"-31" Afghan, Irish Wolfhound, Borzoi
EXTRA LARGE
J Extra Large 14" x 19 1/2" 16" x 21 5/8" 17 1/16" x 22 9/16" Large dogs to 120 lbs. 22"-24" Rottweiler, Akita, Bulldog
K Extra Large Plus 14" x 23 1/2" 16" x 25 5/8" 17 1/16" x 26 9/16" Larger dogs to 150 lbs. 25"-27" St. Bernard, Newfoundland
L Giant 15 1/2" x 27 1/2" 17 5/8" x 29 5/8" 18 9/16" x 30 9/16" Most Giant Breeds 25"-31" Great Dane, Mastiff, Great Pyrenees

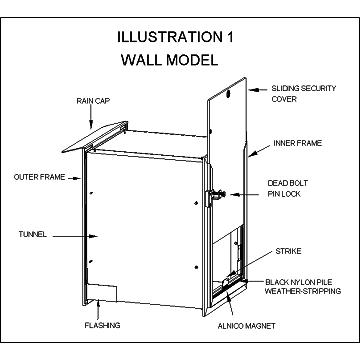

    Hale in Wall Pet Door Technical Specifications

    • Flaps: Double flaps (one flap on each door surface) made of flexible 3/16” clear PVC vinyl. Also available in black and white.
    • Frame: Extruded heavy aluminum with steel reinforced corners
      • Self-Framing: No need to frame out the hole, pet door comes with the aluminum tunnel and fits all walls 1/2" to 10" thick
      • Inner Frame: Inner frame made of two separate metal extrusions. Three sides entrap the security cover. Both metals are .063” wall thickness.
      • Outer Frame: Extruded 6063-T5 aluminum with .063” wall thickness. Designed to sleeve into the inside frame.
      • Flange: The outer frame flange is .0:70” smaller than the inner frame flange to allow the frame to sleeve together.
    • Energy Efficiency
      • Weather Stripping: Flaps are surrounded by ½” nylon pile for maximum insulation. Nylon is woven into a backing 9/32” wide and 1/32” thick.
      • Alnico5 Magnets: A ¼” rod magnet 1 ½” long made from an aluminum, nickel and cobalt alloy known for its strength and durability. Door size determines number of magnets.
      • Strikes: Made of ferrous stainless steel. 1 ½” long, ¾” tall and 1/32” thick. U shaped with interior prongs, when squeezed onto the vinyl flap, the barbed prongs hold firmly.
      • Double Flap: Creates Insulation with dead air space between flaps

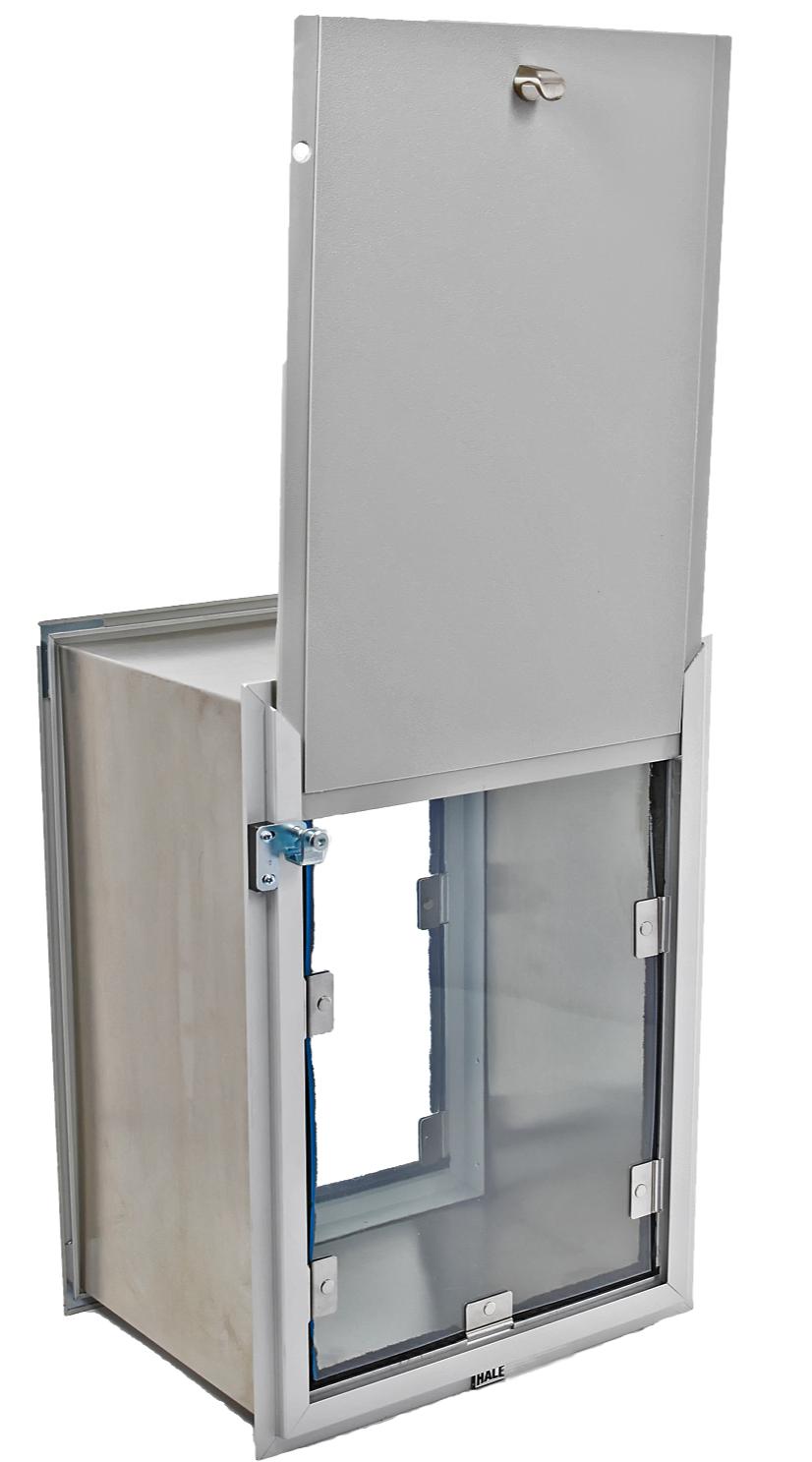

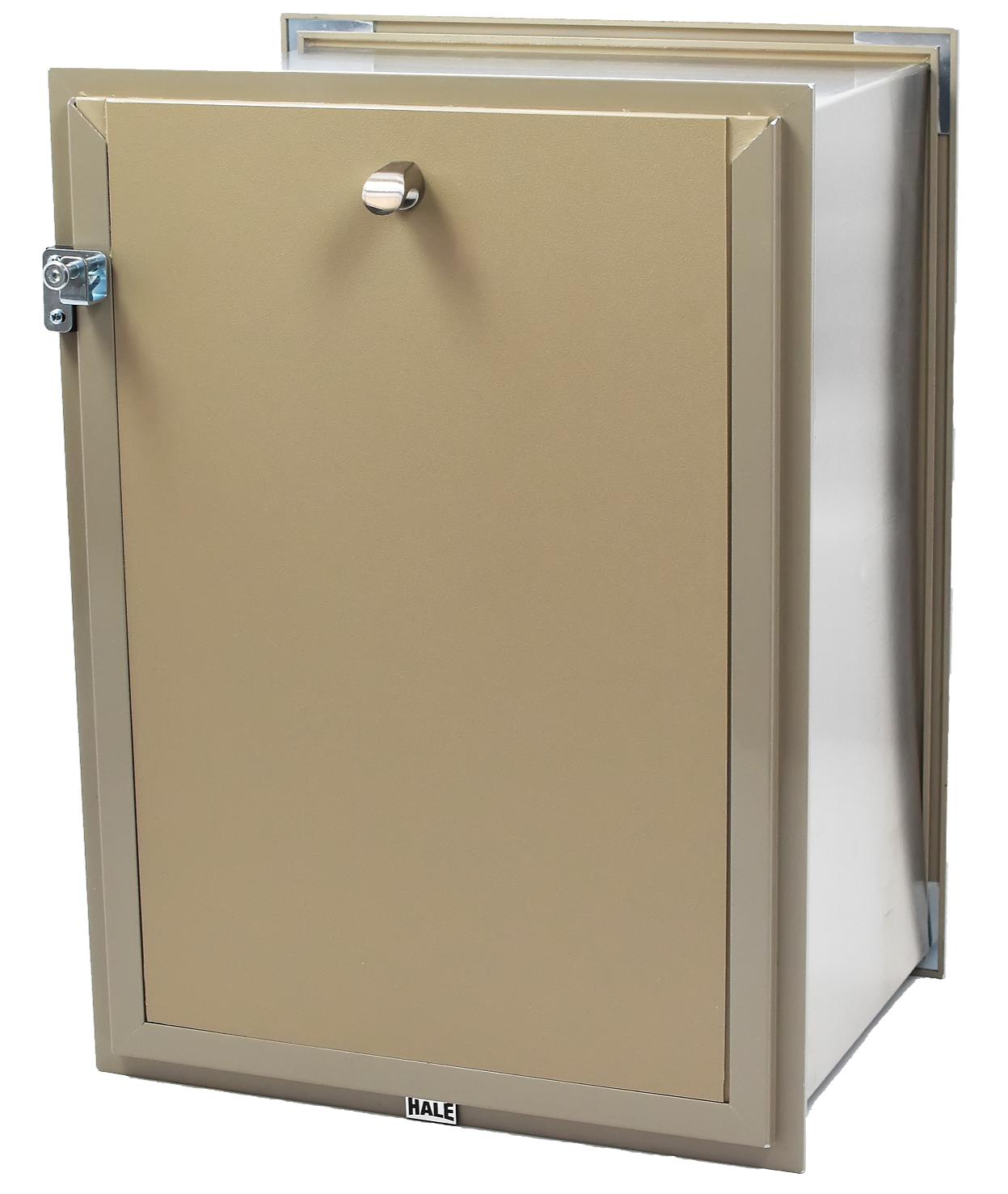

    • Security Cover: 1/4” thick King Starboard® or 3/16" Lexan® polycarbonate sheet. Extremely shock and impact resistant. Has a 3/8” diameter locking hole and a ¾” diameter handle hole. Can be installed outside or inside. Required drill bits are included.
      • Pin Lock: Mounted on the frame secures the cover in place, with a ¼” diameter positive action steel pin encased with 5/32” thick fabricated plated steel.
    • Carpeted Tunnel: Stain, mold and mildew resistant, Olefin nylon carpet covers both inner walls and bottom of the tunnel to prevent the tunnel from getting too hot or too cold for the pet to walk on. Also prevents light and heat from being reflected into the house. EASY TO CLEAN with a vacuum cleaner hose.
    • Raincap: An optional awning like attachment that hooks to the outside frame for use in diverting water and preventing it from entering the pet door from above.

    Hale Pet Door 5 Year No Fault Warranty

    Hale Pet Door has been making the highest quality pet doors on the market for over 30 years. Hale uses fully tempered glass of the greatest quality and strength available for each application, and also meets or exceeds all safety glazing laws and codes in the United States. Hale Pet Door guarantees and warrants, that the Hale Pet Door products and component parts thereof shall be free from any defects in materials and workmanship. The warranty period for all Hale Pet Door model pet doors is effective from the date of purchase and extends to the anniversary date marking the end of the fifth year. Hale agrees to exchange or repair at the company's expense, any unit found to be defective in workmanship and/or material, subject to inspection. Hale Pet Door will even credit 50% towards the cost of a replacement Hale Pet Door, any door that was damaged by the customer (due to no fault by Hale Pet Door). Some restrictions apply, for full warranty details - Hale Pet Door Warranty Terms for Pet Pro Supply

    Hale Pet Door Product Specifications

    • Manufacturer - Hale Pet Door
    • Your Maximum Pet Size - Cats, Large Cats, Small Dogs, Medium Dogs, Large Dogs, X-Large Dogs
    • Climate Suitability - Severe-4 Season, Temperate-3 Season
    • Sealing Value - High, Average
    • Wind Resistance - High, Average
    • Self-Framing - Yes
    • Frame Material - Extruded Aluminum
    • Insulation Value - Average, High
    • Possible to Add Additional Magnets for Greater Wind Resistance - Yes
    • Flap Material - Vinyl
    • Flap Design - Single, Double, Flexible, Thin Flap
    • Flap Colors - Clear
    • Flap Thickness - 1/8"
    • Replacement Flaps Available - Yes
    • Ability to Lock Flap - Separate Locking Cover-Loads from Side or Top
    • Locking Cover Material - King Starboard
    • Can Be Installed In - Brick or double brick walls, block walls, standard wood or metal stud construction, stucco, interior or exterior walls
    • Return Period - 30 days
