DRE Tuttnauer M Series Manual Autoclave

The Tuttnauer M Series Manual Autoclave is a manual model with durable components that reduce running and maintenance costs.

Tuttnauer’s M Series Autoclaves are affordable options for clinics that do not want to compromise on quality, safety, and reliability.

Available in 3 models:

• The Tuttnauer 2340M Manual Autoclave

• The Tuttnauer 2540M Manual Autoclave

• The Tuttnauer 3870M Large Capacity Manual Autoclave

Key Features:

• Automatic shut off at the end of sterilization and dry cycles

• Electropolished chamber and door

• A double safety locking device prevents door from opening while chamber is pressurized

• Front-located drain valve for quick and easy draining

• Dual safety thermostat protects against overheating

• Warranty: 2 years parts and labor



SPECIFICATIONS

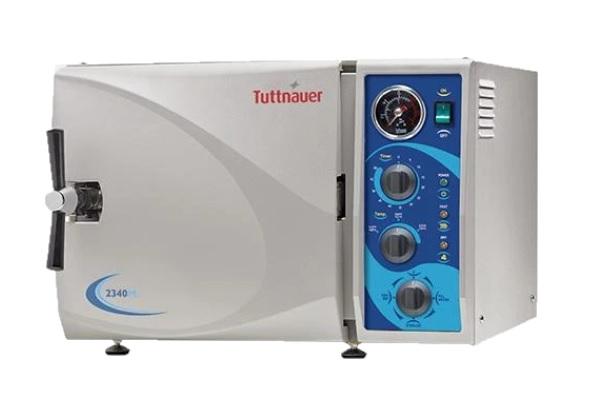

 Tuttnauer 2340M Manual Autoclave

Chamber Dimensions: 9” (230 mm) x 18” (470 mm)
Volume: 5 gallons | 19 Liters
Overall dimensions: 20” (510 mm) W x 21.5” (545 mm) D x 14.4” (365 mm) H
Standard cassette capacity: 3 full and 3 half
Tray dimensions: 6.7” (170 mm) W x 16.3” (415 mm) x 0.8” (20 mm) H
Number of Trays: 3
Cold cycle time: 27 minutes
Hot cycle time: 13 minutes
Voltage: 120V
Frequency: 50/60 Hz
Power: 1400W
Current: 12A
Shipping weight: 85 lbs. (39 kg)

Tuttnauer 2540M Manual Autoclave

Chamber Dimensions: 10” (254 mm) x 19” (475 mm)
Volume: 6 gallons | 23 Liters
Overall dimensions: 20” (510 mm) W x 21.5” (545 mm) D x 14.4” (365 mm) H
Standard cassette capacity: 3 full 3 half
Tray dimensions: 11.3” (286 mm) W x 26.6” (675 mm) D x 1” (25 mm) H, 13.8” (350 mm) W x 26.6” (675 mm) D x 1” (25 mm) H
Number of Trays: 2
Cold cycle time: 32 minutes
Hot cycle time: 23 minutes
Voltage: 230V
Frequency: 50/60 Hz
Power: 3000W
Current: 12A
Shipping weight: 85 lbs. (39 kg)

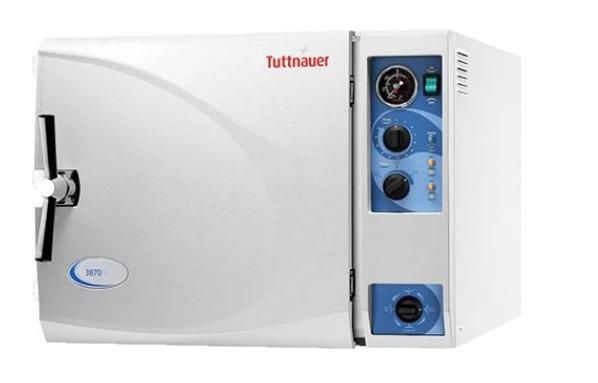

Tuttnauer 3870M Large Capacity Manual Autoclave

Chamber Dimensions: 15” (384 mm) x 30” (760 mm)
Volume: 22 gallons | 85 Liters
Overall dimensions: 26” (665 mm) W x 34.5” (875 mm) D x 20.6” (525 mm
Standard cassette capacity: 15 full
Tray dimensions: 6.7” (170 mm) W x 16.3” (415 mm) x 0.8” (20 mm) H
Number of Trays: 4
Cold cycle time: 30 minutes
Hot cycle time: 14 minutes
Voltage: 120V
Frequency: 50/60 Hz
Power: 1400W
Current: 13.6A
Shipping weight: 209 lbs. (95 kg)
