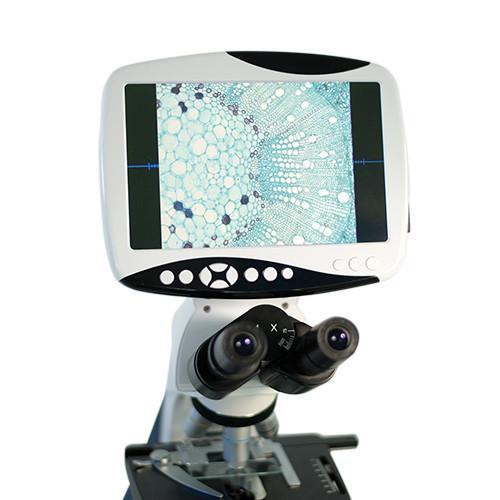

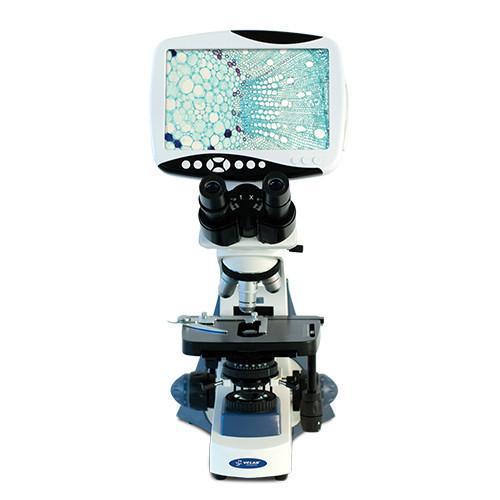

The VE-653 is a digital microscope for professional use and ideal for higher education, research and clinical laboratories. This model comes equipped with an LCD screen and an integrated digital camera.Its specialized software allows data storage and offers editing tools (pointer and arrow) and sample measurements (red, blue, white, black and green color strips).
The VE-653 also offers an innovative digital solution in addition to the optional configuration compatible with the phase contrast kit and polarization set.
Product Specifications:
| EYEPIECES | WF 10X/18mm with rubber eyecups and diopter adjustment on one eyepiece. |

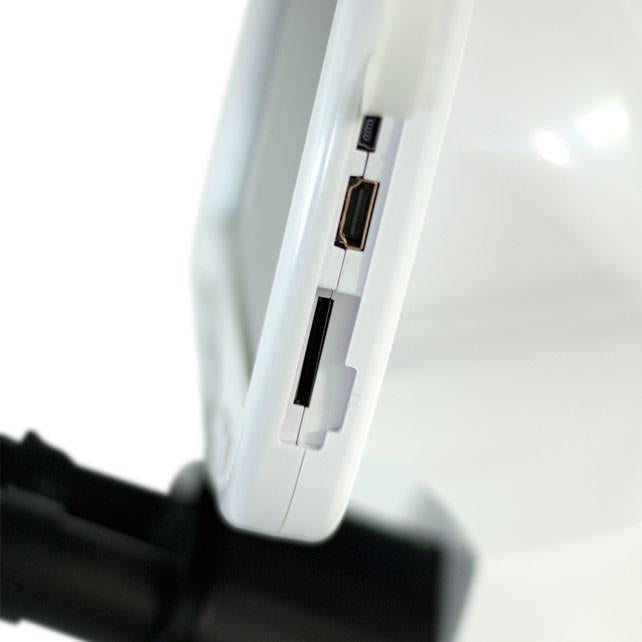

| HEAD | Binocular Siedentopf type, 45° inclined and 360° rotatable. Interpupillary distance adjustment between 48 - 75 mm / 1.88” - 2.95” and 9” LCD screen (1280 x 800p resolution) with 5.0MP integrated camera, SD card slot, Mini USB and HDMI ports. |
| NOSEPIECE | Quadruple nosepiece with anti-slip grip and click-stops. |
| OBJECTIVES | 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish and color ring for easy identification. |
| STAND | Stative, robust and reinforced with epoxy paint finish. |
| STAGE | Two-layer stage with X-Y coaxial movement, 5.90” x 5.19”, vernier, millimeter scale, clamp and height adjustment with stop. |
| CONDENSER | Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included). |
| DIAPHRAGM | Iris with filter holder. |
| FOCUSING | Coarse and fine anti-slip control knob with tension adjustment. |
| ILLUMINATION | Kohler LED with intensity control and field diaphragm in the lamp. |
| POWER SUPPLY |
Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter. |
Accessories included:
Accessories not included:
