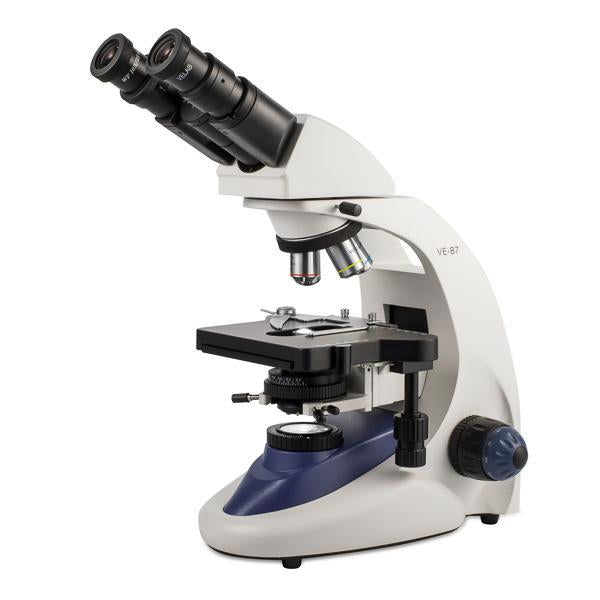

The VE-B7 professional microscope is ideal for research, higher education and routine work in clinical laboratories. Its plan achromatic objectives with infinite correction offer optical aberrations improvement for the observation of higher quality images.
The Kohler LED lighting makes it a very complete and versatile device. Its objectives provide a wide field of observation and the Kohler LED lighting makes it a very complete and versatile device.
The VE-B7 is adaptable to the needs of the user, it can be configured optionally to be compatible with a phase contrast kit and polarization set.
Product Specifications:
| EYEPIECES: | WF 10x/22mm with rubber eyecups and diopter adjustment on one eyepiece. |
| HEAD: | Binocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75 mm / 1.88” - 2.95”. |
| NOSEPIECE: | Quadruple nosepiece with anti-slip grip and click-stops. |

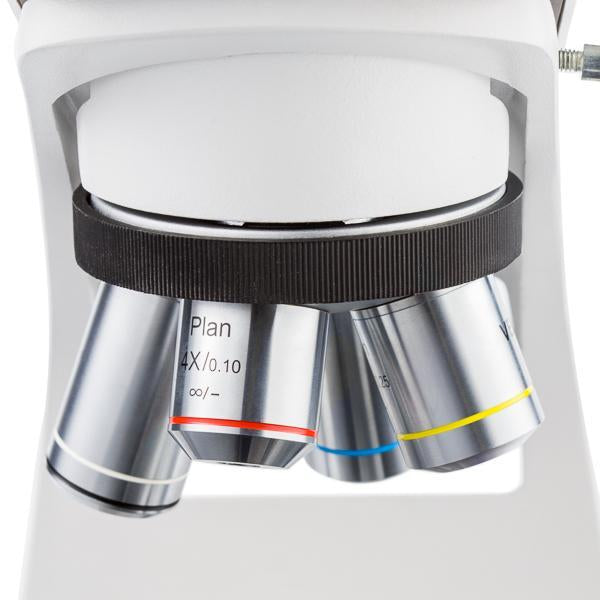

| OBJECTIVES: | 4X, 10X, 40X (retractable) and 100X (retractable) oil immersion with infinity corrected plan achromatic optics, metallic finish and color ring for easy identification. |
| BODY: | Stative, robust and reinforced with epoxy paint finish. |

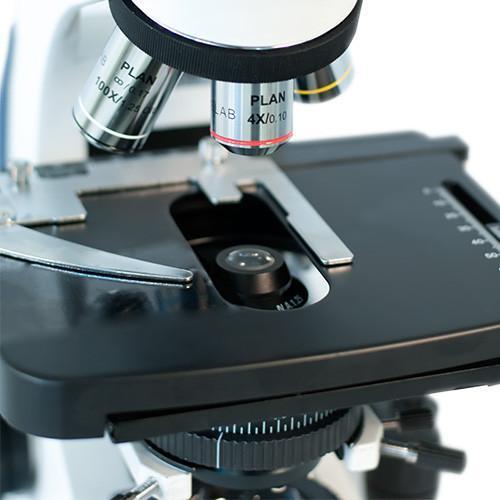

| STAGE: | Double plate with X-Y coaxial movement, 150 x 132 mm / 5.90” x 5.19”, vernier, millimeter scale, clamp and height adjustment with stop. |
| CONDENSER: | Abbe, A.N. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (no included). |
| DIAPHRAGM: | Iris with filter holder. |
| FOCUSING: | Coarse and fine anti-slip control knob with tension adjustment. |
| ILLUMINATION: | Kohler LED with variable intensity control and field diaphragm in the lamp. |
| POWER SUPPLY: | Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 120V, 50/60 Hz AC adapter. |
| DIMENSIONS: | 10.43″ x 16.92″ x 11.61″ |
Accessories included:
Accessories not included:
