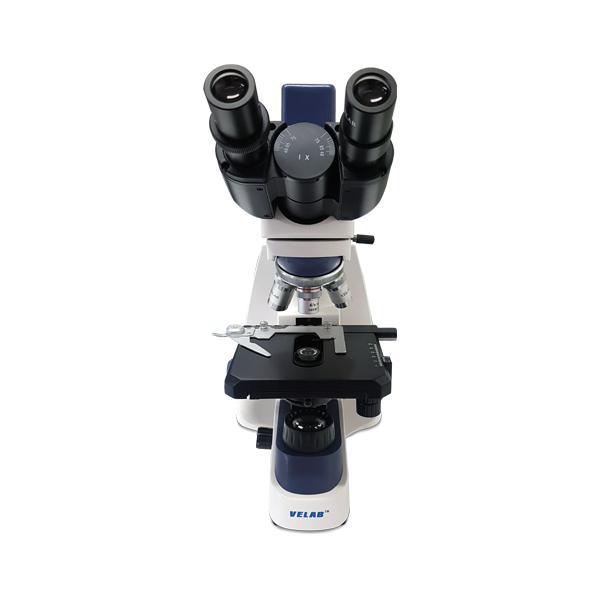

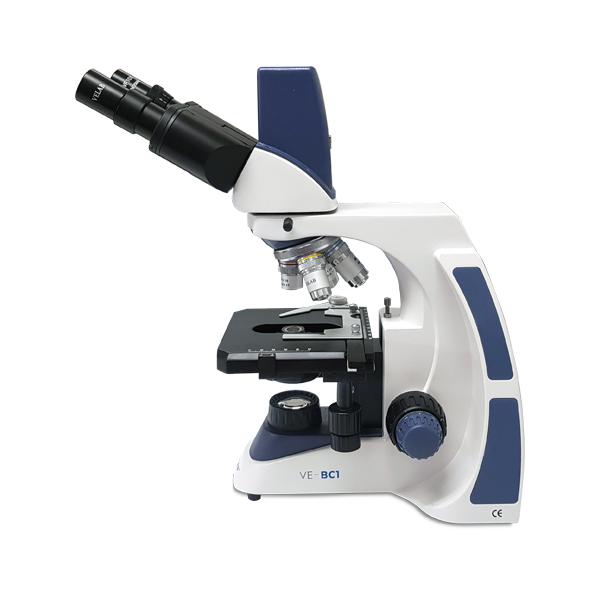

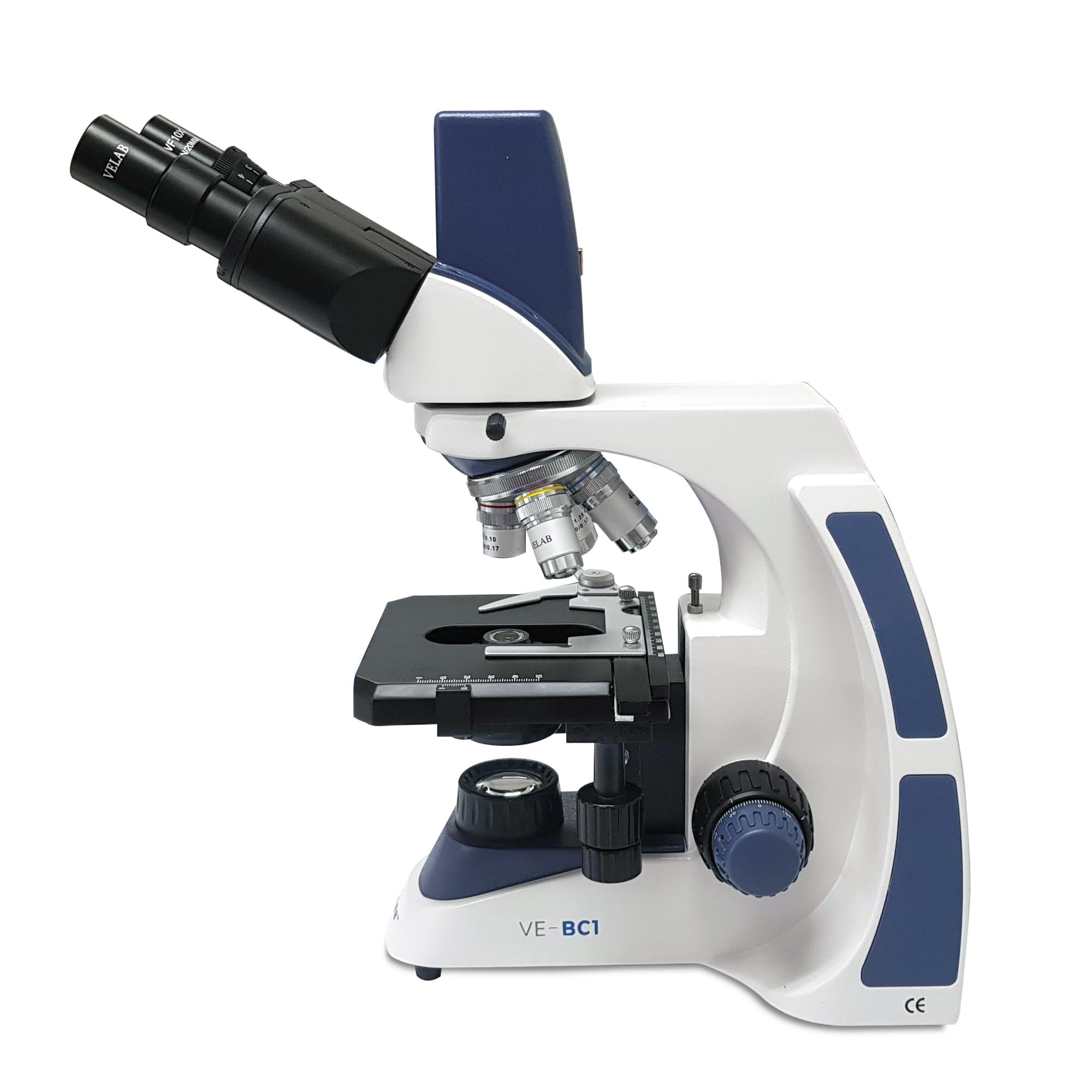

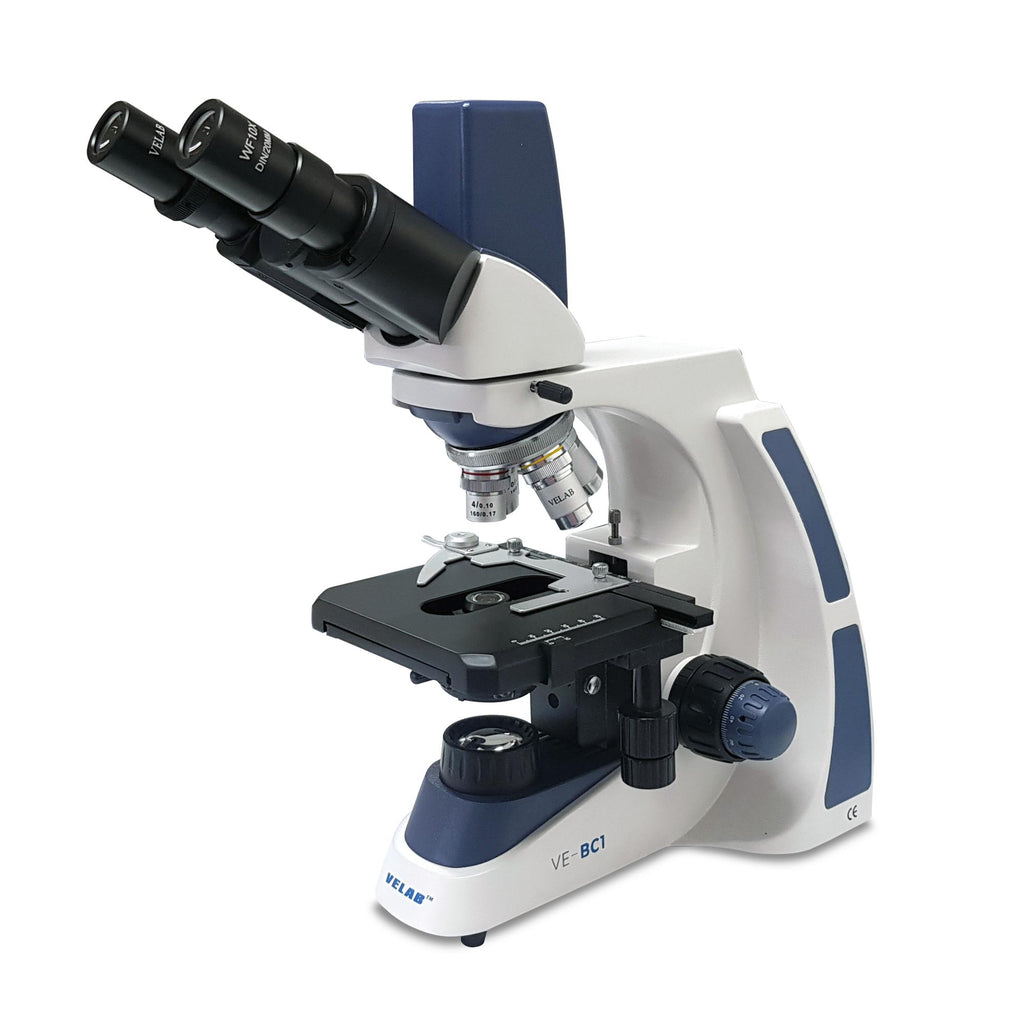

Equipped with a 3.0MP digital camera, the VE-BC1 is the ideal device for teaching secondary and higher education courses, as well as for analysis, group observation and evidence documentation during diagnosis, basic and intermediate research.
It includes easy operation software compatible with Windows operating systems. It is practical for the observation of images in real time and for storing obtained captures on your computer.
Product Specifications:
| EYEPIECES: | WF 10X/18 mm with diopter adjustment on one eyepiece. |
| HEAD: | Binocular Siedentopf type, 45° inclined and 360° rotatable, with interpupillary distance adjustment between 55 - 75mm / 2.16” - 2.95” and integrated 3.0MP digital camera. |
| NOSEPIECE: | Quadruple nosepiece with anti-slip grip and click-stops. |
| OBJECTIVES: | 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, anti-slip grip and color ring for easy identification. |
| STAND: | Stative, robust and reinforced with epoxy paint finish. |
| STAGE: | Two-Layer stage with X-Y coaxial movement, 4.92” x 4.92”, vernier, millimeter scale, clamp and height adjustment with stop. |
| CONDENSER: | Abbe, N.A. 1.25 with height adjustment. |
| DIAPHRAGM: | Iris with filter holder. |
| FOCUSING: | Coarse and fine anti-slip control knob with tension adjustment. |
| ILLUMINATION: | LED with intensity control. |
| POWER SUPPLY: | 110-240V, 50/60 Hz AC adapter. |
| DIMENSIONS | 7.08″ x 13.85″ x 10.43″ |
Accessories included:
