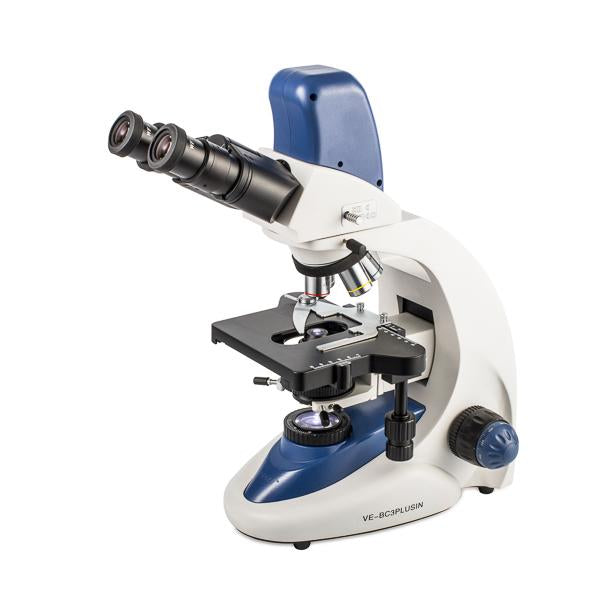

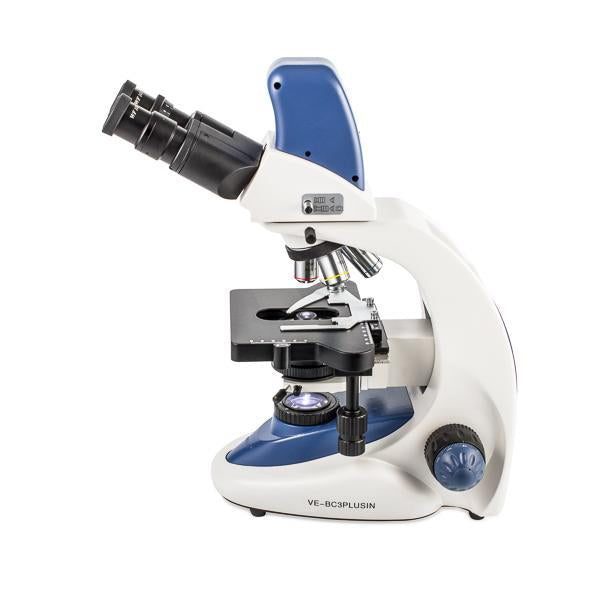

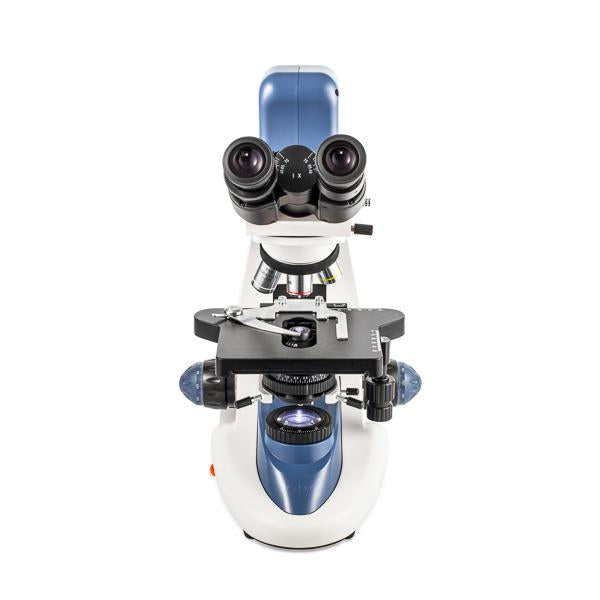

The VE-BC3 PLUS PLAN IN digital microscope was designed for professional use and offers all the virtues of a biological microscope as well as being equipped with a 5.0MP digital camera. It includes a simple operational software compatible with Windows operating systems. Ideal for the observation of images in real time and for storing captures on a computer.
Its maintenance- free plate is free of frames and lateral projections and its objectives provide a wide field of observation. the Kohler LED lighting makes it a very complete and versatile device in higher education, research and diagnosis.
.Product Specifications:
| EYEPIECES: | WF 10x/20mm with rubber eyecups and diopter adjustment on one eyepiece. |

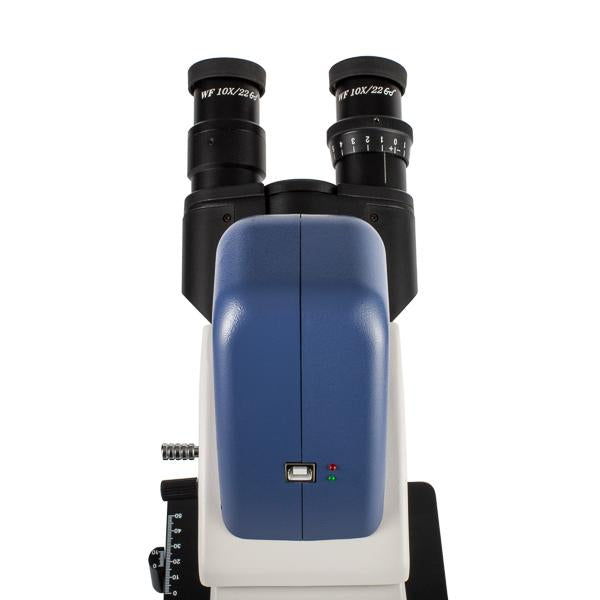

| HEAD: | Binocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88” - 2.95” and integrated 5.0MP digital camera. |
| NOSEPIECE: | Quadruple nosepiece with anti-slip grip and click-stops. |
| OBJECTIVES: | 4X, 10X, 40X (retractable) and 100X (retractable) oil immersion with Infinity-Corrected Plan Achromatic optics , metallic finish and color ring for easy identification. |
| STAND: | Stative, robust and reinforced with epoxy paint finish. |
| STAGE: | Double plate with X-Y coaxial movement, 150 x 132 mm / 5.90” x 5.11”, vernier, millimeter scale, clamp and height adjustment with stop. |
| CONDENSER: | Abbe, A.N. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (no included). |
| DIAPHRAGM: | Iris with filter holder. |
| FOCUSING: | Coarse and fine anti-slip control knob with tension adjustment. |
| ILLUMINATION: | Kohler LED with variable intensity control and field diaphragm in the lamp. |
| POWER SUPPLY: | Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter. |
| DIMENSIONS: | 10.43″ x 17.51″ x 11.61″ |
Accessories included:
Accessories not included:
**10-years limited warranty.
