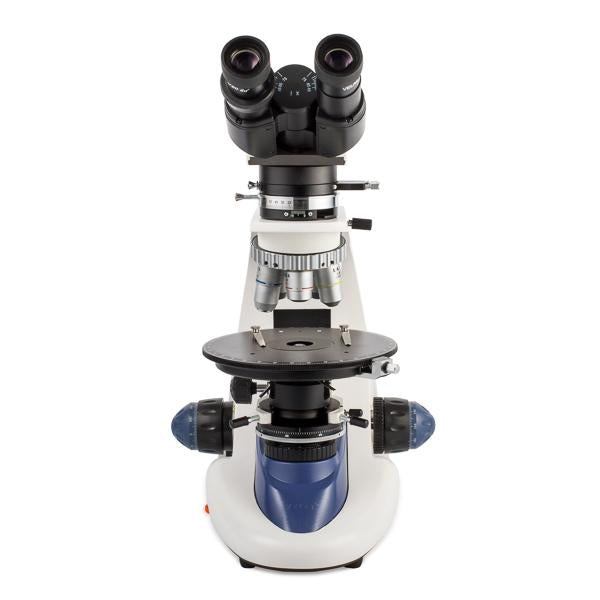

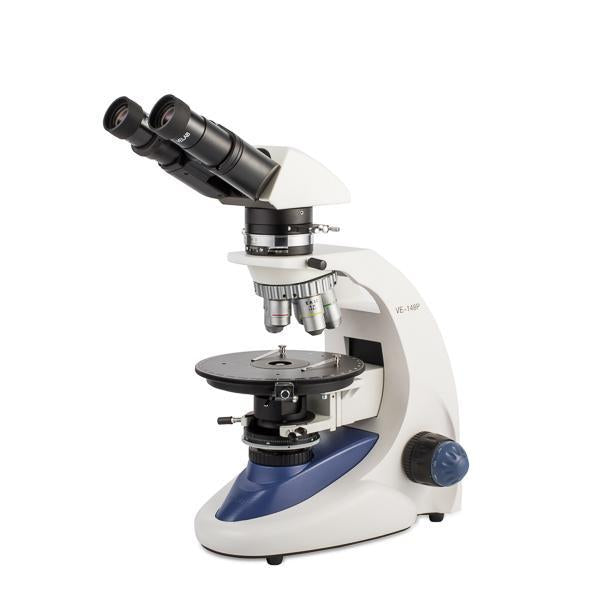

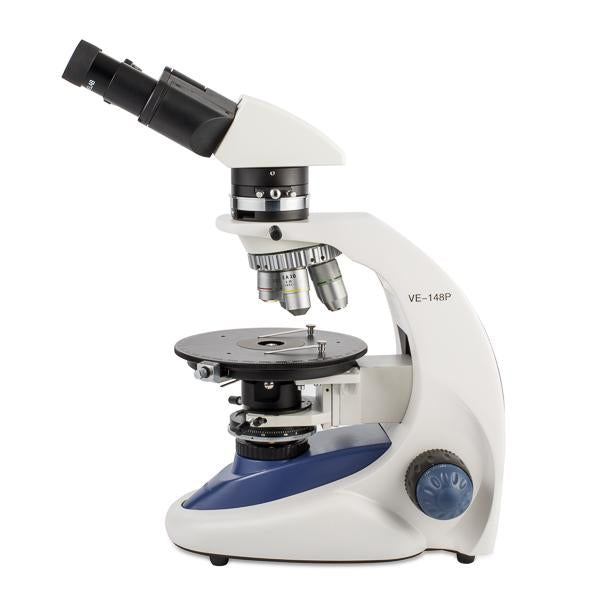

The VE-148P is a professional polarized light microscope, ideal forobserving crystalline or fibrous materials and the identification or study of mineral textures. The VE-148P offers observations with 3types of polarized light (conoscopic, simple and orthogonal) and hasa rotating circular stage, divided by a 360° scale.
.Product Specifications:
| EYEPIECES: | WF 10x/20mm with rubber eyecups and diopter adjustment on one eyepiece. |
| HEAD: | Binocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88” - 2.95” and Bertrand lens system. |
| NOSEPIECE: | Quintuple nosepiece with anti-slip ring and click-stops. |

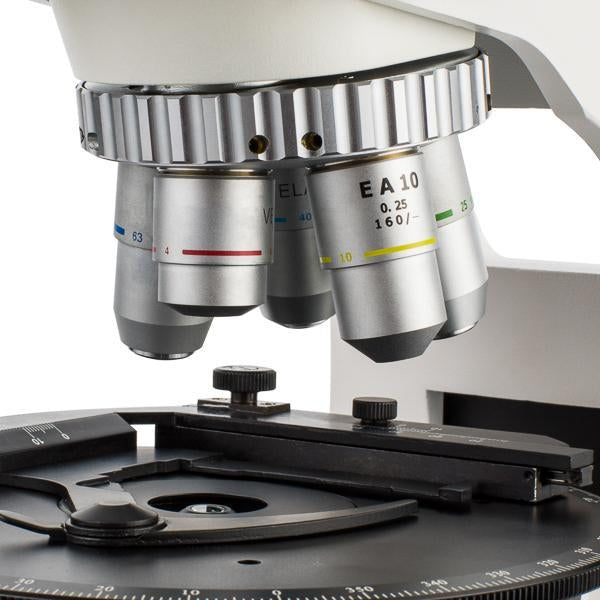

| OBJECTIVES: | 4X, 10X, 25X (retractable), 40X (retractable) and 63X (retractable) with achromatic optics, metallic finish and color ring for easy identification. |
| STAND: | Stative, robust and reinforced with epoxy paint finish. |
| STAGE: | Circular mechanics with 170 mm / 6.69” diameter, divided in 360° scale, goniometer and double sample adjustment option, two clips or removable mechanical stage with X-Y movement. |
| CONDENSER: | Abbe, A.N. 1.3 of oscillation. |
| DIAPHRAGM: | Iris with filter holder. |
| FOCUSING: | Coarse and fine anti-slip control knob with tension adjustment. |
| ILLUMINATION: | Kohler halogen 12V/30W with variable intensity control and field diaphragm in the lamp. |
| POWER SUPPLY: | 120V, 50/60 Hz AC adapter. |
| DIMENSIONS: | 10.43″ x 18.30″ x 11.61″ |

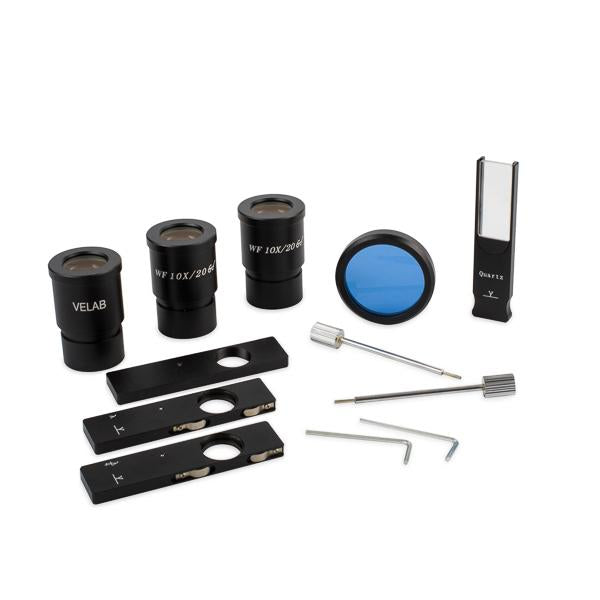

Accessories included:
**10-years limited warranty
