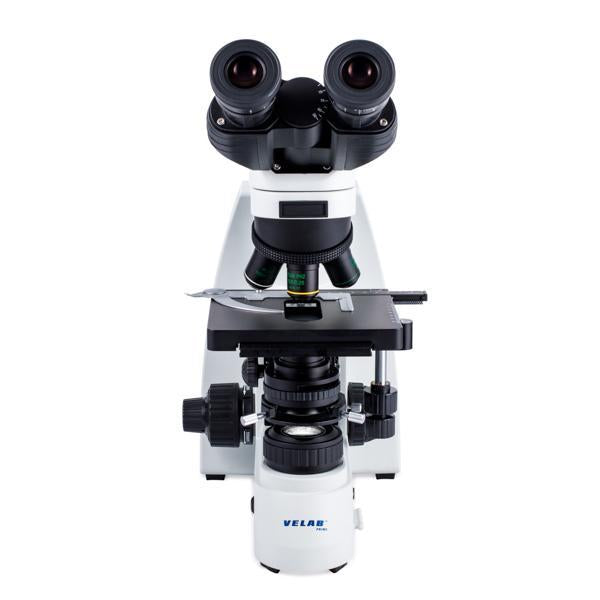

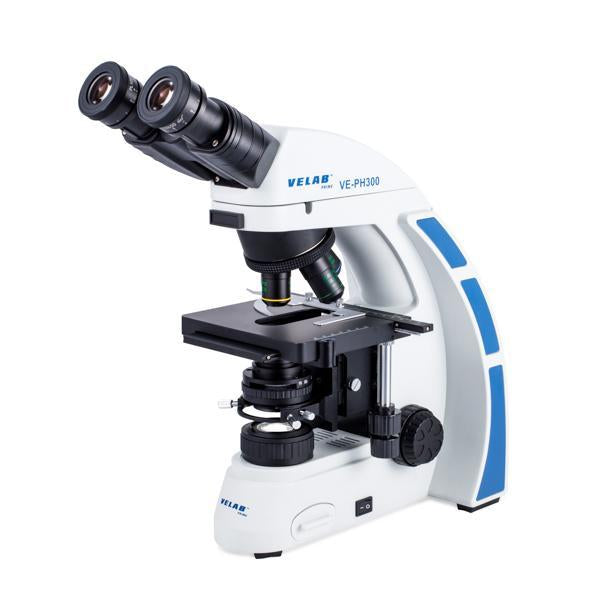

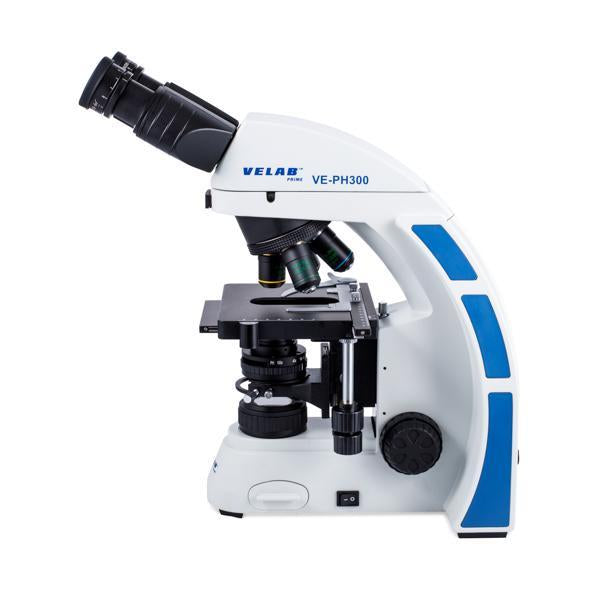

The VE-PH300 phase contrast microscope was designed for professional use that allows immediate exams. It is used in biological areas for the observation of fresh samples without the need of applying stains that can damage their structure.
Used in the observation of cells and tissue, fresh blood analysis, quantification of microorganisms and parasites in fluids and tissues. Applicable in biological areas such as physiology, pathology, pharmacology and medicine. It has 4 phase rings and an observation position for a clear field. It has excellent optical quality components and highly efficient LED illumination.
Product Specifications:
| EYEPIECES: | PL 10x/20 mm 360° rotary, with rubber eyecups and ± 5 mm diopter adjustment in both eyepieces. |
| HEAD: | Binocular Gemel type, 30° inclined with interpupillary distance adjustment between 50 – 75 mm / 1.96”- 2.95”, fluorescence illuminator adapter with bright field position. |

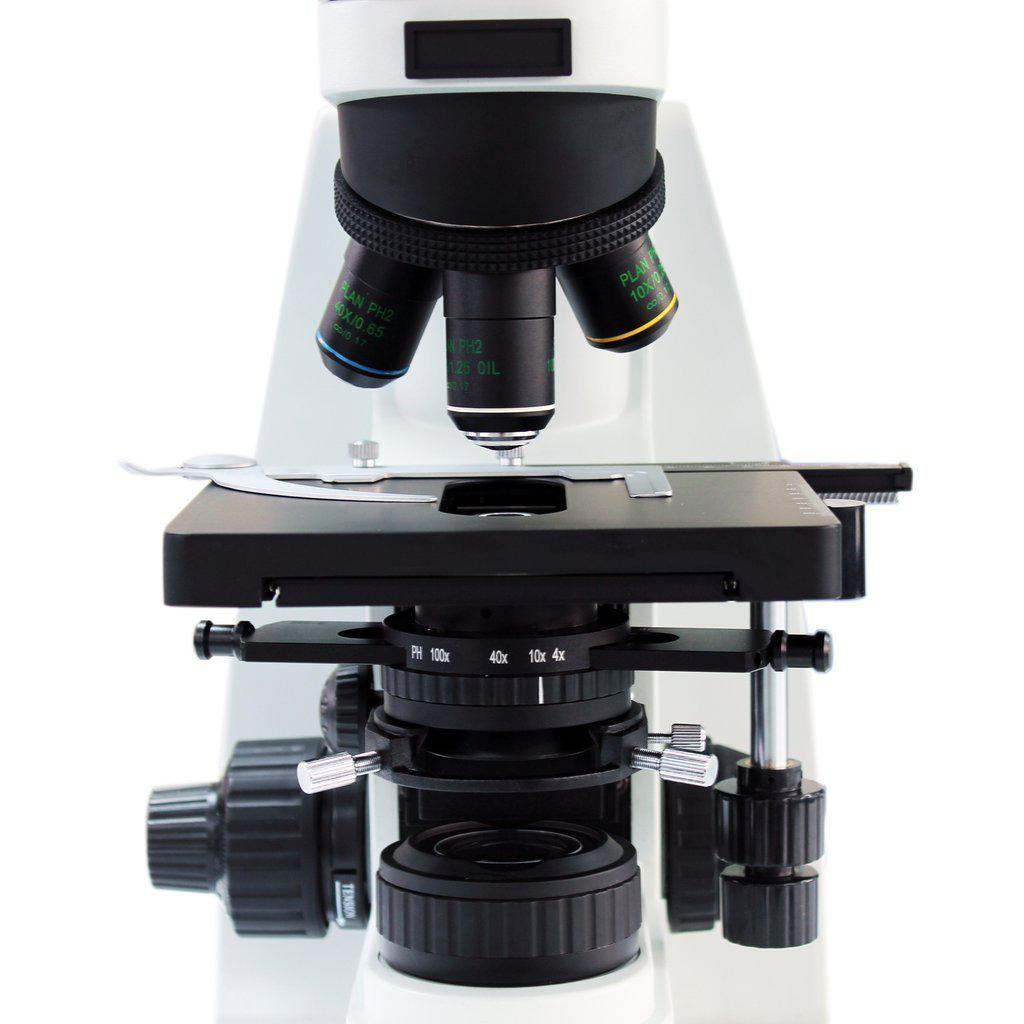

| NOSEPIECE: | Quadruple nosepiece with anti-slip ring and click-stops, mounted on high-tension ball bearings. |

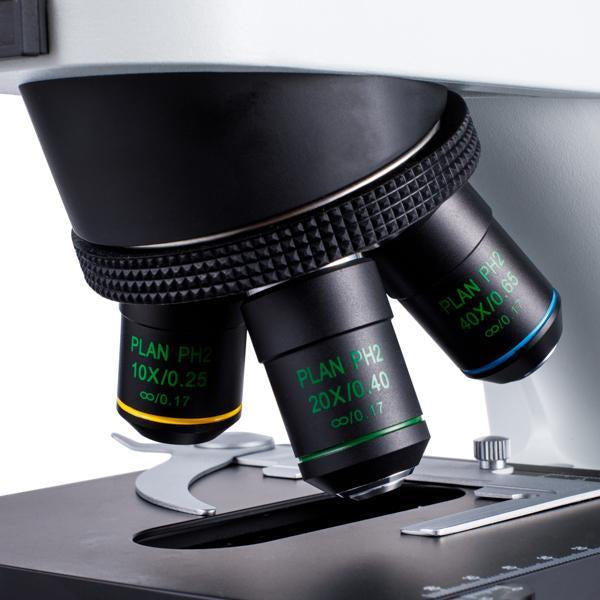

| OBJECTIVES: | 10X/0.25, 20X/0.40, 40X/0.65 (retractable) and 100X/1.25 (retractable) oil immersion for phase contrast, with infinity corrected plan achromatic optics and color ring for easy identification. |
| BODY: | Stative, robust and reinforced with epoxy paint finish. |
| STAGE: | Double plate with X-Y coaxial movement, 150 x 140mm / 5.90” x 5.51”, vernier, millimeter scale (88 x 60 mm / 3.46” x 2.36”), clamp and height adjustment with stop. |

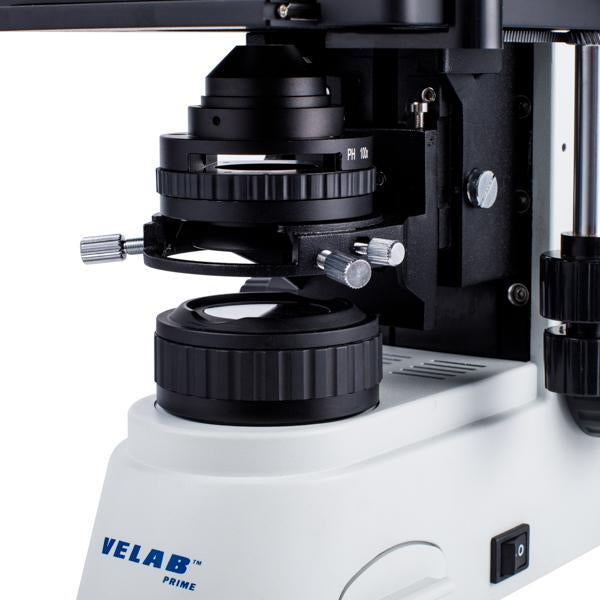

| CONDENSER: | Abbe, A.N. 1.25, with height adjustment screw and groove for lamellas placement for phase contrast; two included lamellas, 10X/40X and 20X/100X with a third option for bright-field in both. |
| DIAPHRAGM: | Iris with filter holder. |
| FOCUSING: | Coarse and fine anti-slip control knob with 0.001 mm precision, 200 graduations per micrometer turn (0.2 mm) and tension adjustment. |
| ILLUMINATION: | 3W Kohler LED with field diaphragm in the lamp and epi-fluorescence LED at 470 nm (optional for 365, 455 and 560 nm), 6V / 3W, with variable intensity control in both lamps. |
| POWER SUPPLY: | 120V, 50/60 Hz AC adapter. |
| DIMENSIONS: | 205mm x 450mm x 380mm / 8.07″ x 17.71″ x 14.96″ |
Accessories included:
Accessories not included:
**10-years limited warranty
