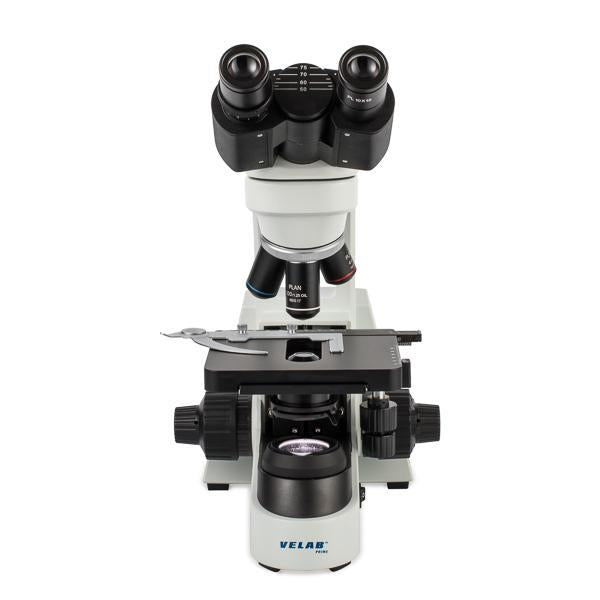

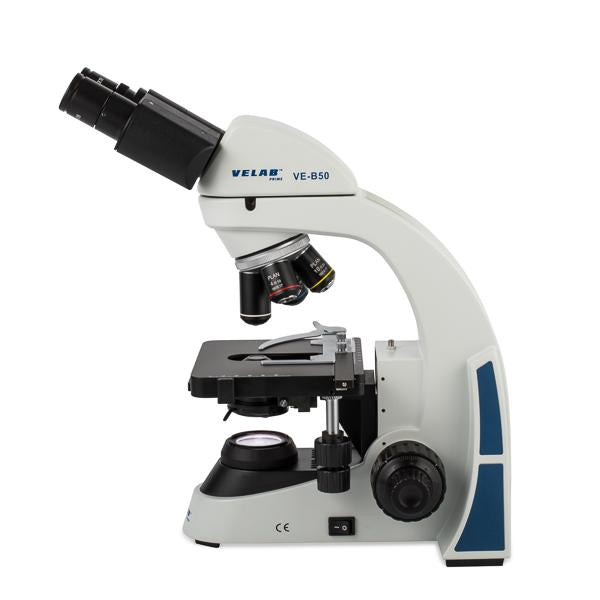

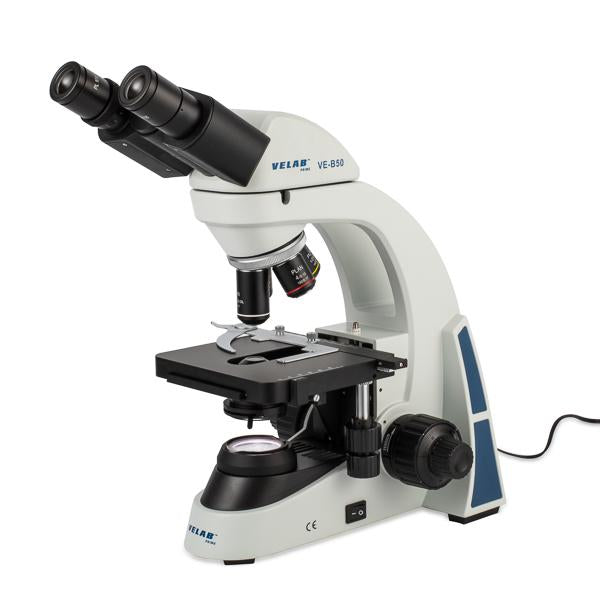

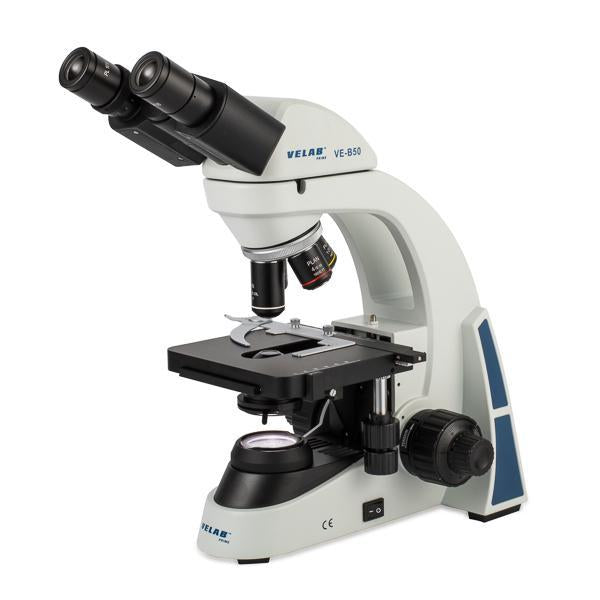

The VE-B50 is a biological microscope designed for the development of advanced microscopy techniques. Applicable in research, higher education and clinical laboratories for diagnostic purposes and ideal for the detection of pathologies.

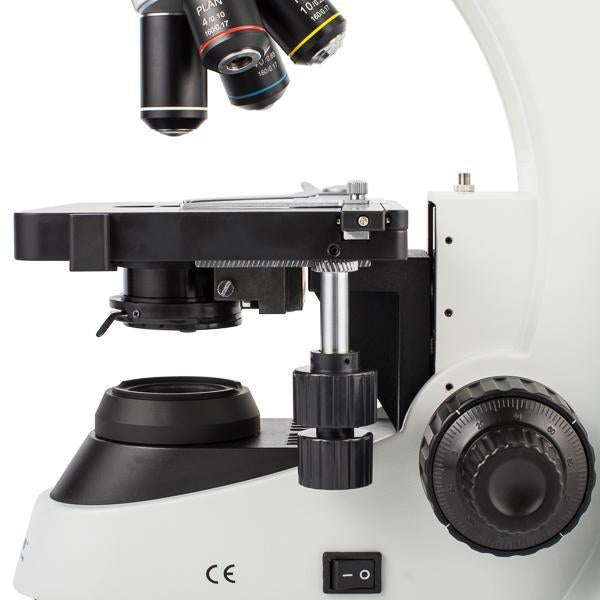

Its stage allows the fine and smooth displacement of the sample, the importance of the sample in the histology and cytology tests. It has excellent optical quality components and long-life LED illumination. The VE-B50 offers diopter adjustment in one of its parameters to compensate for the difference in focus that is natural in the user’s eyes.
Product Specifications:
| EYEPIECES |
|
| HEAD | Binocular Siedentopf type, 30° inclined with interpupillary distance adjustment between 50 - 75 mm/1.96” - 2.95”. |
| NOSEPIECE | Quadruple nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings. |
| OBJECTIVES | 4X, 10X, 40X (S) and 100X (S) oil immersion with plan achromatic optics and color ring for easy identification. |
| STAND | Stative, robust and reinforced with epoxy paint finish. |
| STAGE | Double plate with X-Y coaxial movement, 5.51” x 5.519”, vernier, millimeter scale ( 3.46” x 2.36”), clamp and height adjustment with stop. |
| CONDENSER | Abbe, N.A. 1.25 with height adjustment screw. |
| DIAPHRAGM | Iris with filter holder. |
| FOCUSING | Coarse and fine anti-slip control knob with 0.002 mm precision and tension adjustment. |
| ILLUMINATION | 3W LED with intensity control. |
| POWER SUPPLY | 110-240V, 50/60 Hz AC adapter. |
Accessories included:
