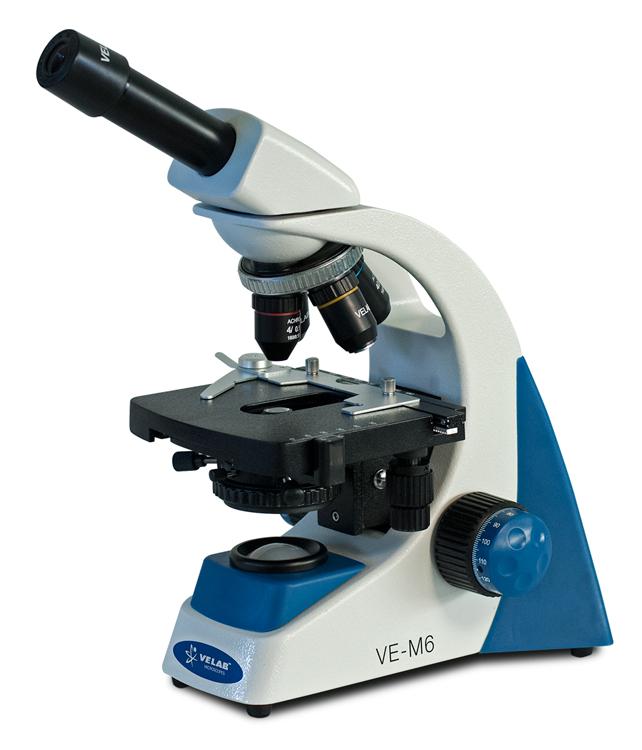

Professional wide-plate microscope, ideal for higher education, research, as well as routine work in clinical laboratories. Suitable for smear microscopy, spermatobioscopy, cellular diversity in hematology, cell count in Neubauer chambers, observation of the disposition and cellular organization in different tissues, observation of urinary sediment and stool ova and parasite examinations
Product Specifications:
| EYEPIECE | WF 10X/18 mm with block screw. |
| HEAD | Monocular head, 45° inclined, 360° rotatable. |
| NOSEPIECE | Quadruple nosepiece with anti-slip grip and click-stops. |
| OBJECTIVES | 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, anti-slip grip and color ring for easy identification.. |
| STAND | Stative, robust and reinforced with epoxy paint finish. |

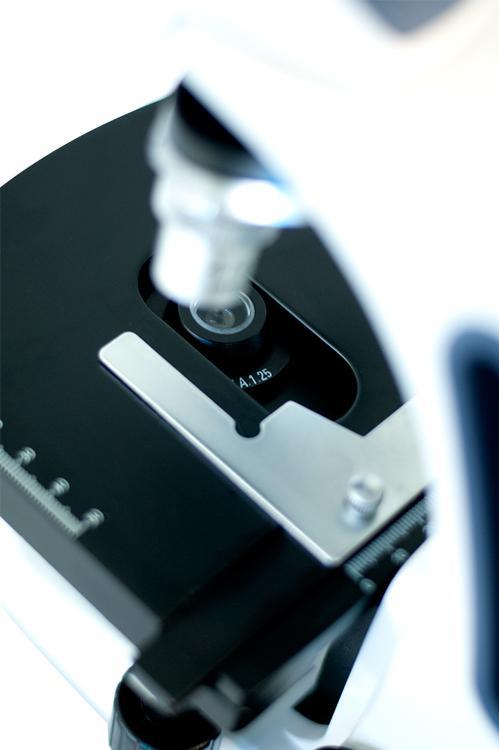

| STAGE | Two-Layer stage with X-Y coaxial movement, 125 x 125 mm / 4.92” x 4.92”, vernier, millimeter scale, clamp and height adjustment with stop |
| CONDENSER | Abbe, N.A. 1.25 with height adjustment screw. |
| DIAPHRAGM | Iris type with filter holder. |
| FOCUSING | Coarse and fine anti-slip control knob with tension adjustment. |
| ILLUMINATION | LED with variable intensity control. |
| WEIGHT | 11.52 lb / 5.22kg |
| DIMENSIONS | 9.06” x 14.57” x 18.5” / 230 x 370 x 469 mm |
| POWER SUPPLY | 110-240V, 50/60 Hz AC adapter |
Accesories included:
