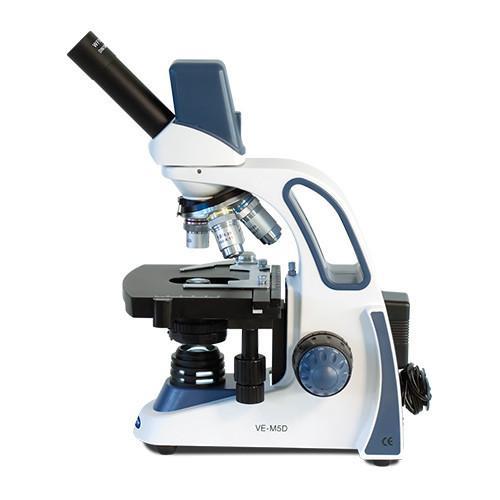

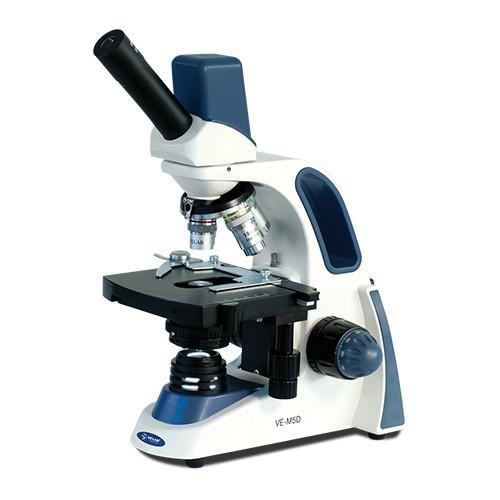

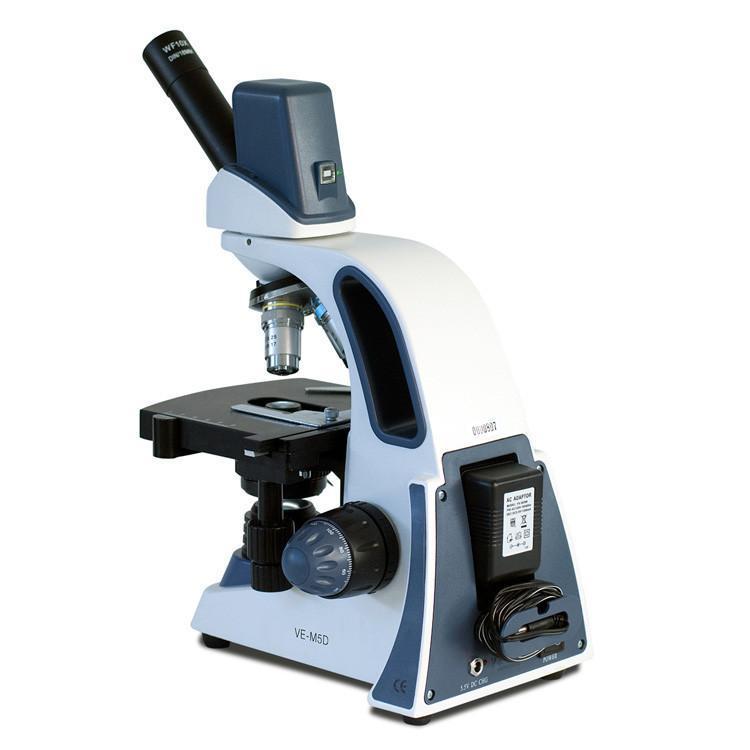

The VE-M5D microscope can fulfil all kinds of basic and advanced procedures in clinical laboratories. Equipped with a 1.3MP digital camera, the VE-M5D is ideal for the education sector. It facilitates group observations of microorganisms, plants as well as the identification of different types of cells, even electronic elements. Includes easy-to-use software compatible with Windows operating systems to analyze and store images on your computer.
Product Specifications:
| EYEPIECE: | WF 10X/18 mm with block screw. |
| HEAD: | Monocular head, 45° inclined, 360° rotatable and integrated 1.3 MP digital camera. |
| NOSEPIECE: | Quadruple nosepiece with click-stops. |
| OBJECTIVES: | 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification. |
| STAND: | Stative, robust and reinforced with epoxy paint finish. |
| STAGE: | Two-Layer stage with X-Y coaxial movement, 5.11” x 5.11”, vernier, millimeter scale, clamp and height adjustment with stop. |
| CONDENSER: | Abbe, N.A. 1.25 with height adjustment screw. |
| DIAPHRAGM: | Iris with filter holder. |
| FOCUSING: | Coarse and fine anti-slip control knob with tension adjustment. |
| ILLUMINATION: | LED with intensity control. |
| POWER SUPPLY: | Three 1.5V AA rechargeable batteries (not included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter. |
| DIMENSIONS: | 7.99″ x 13.77″ x 9.88″ |
Accesories included:
*10-years limited warranty.
