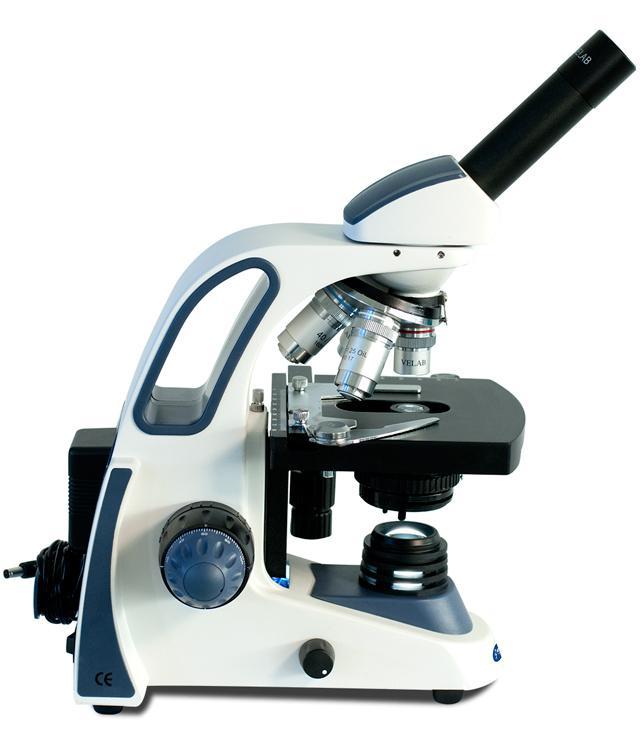

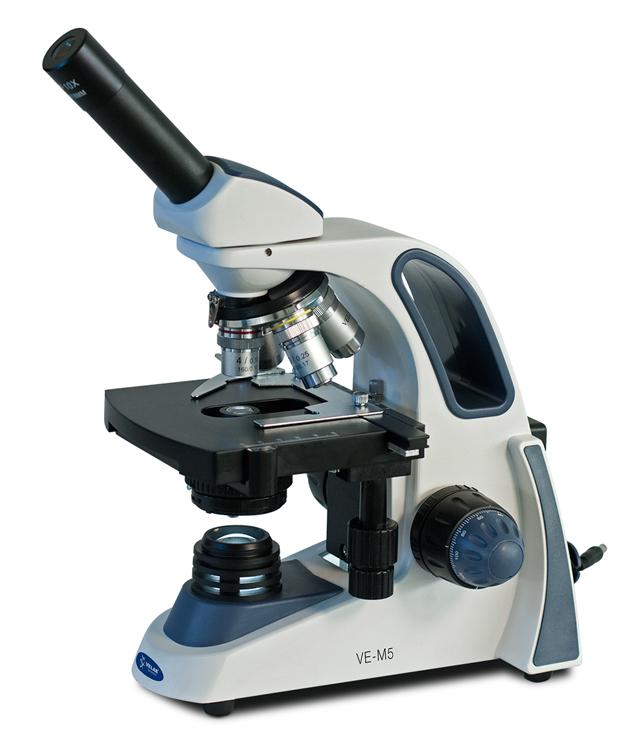

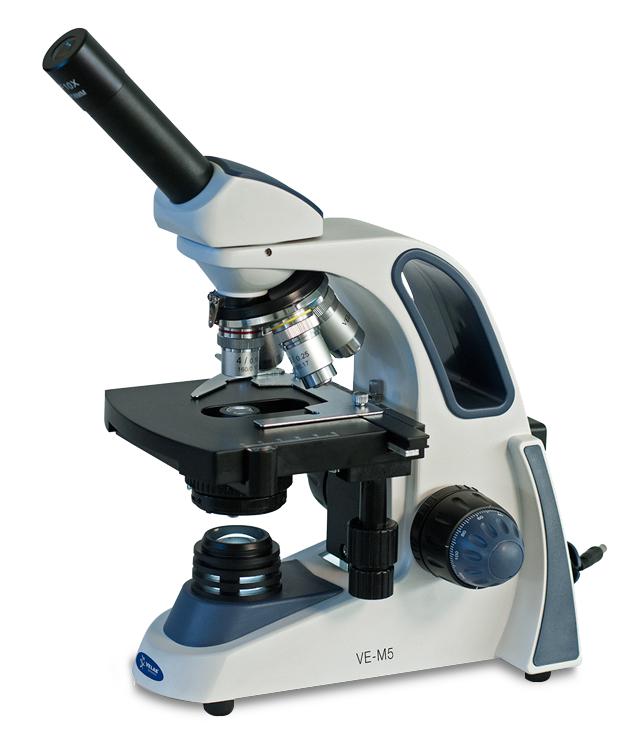

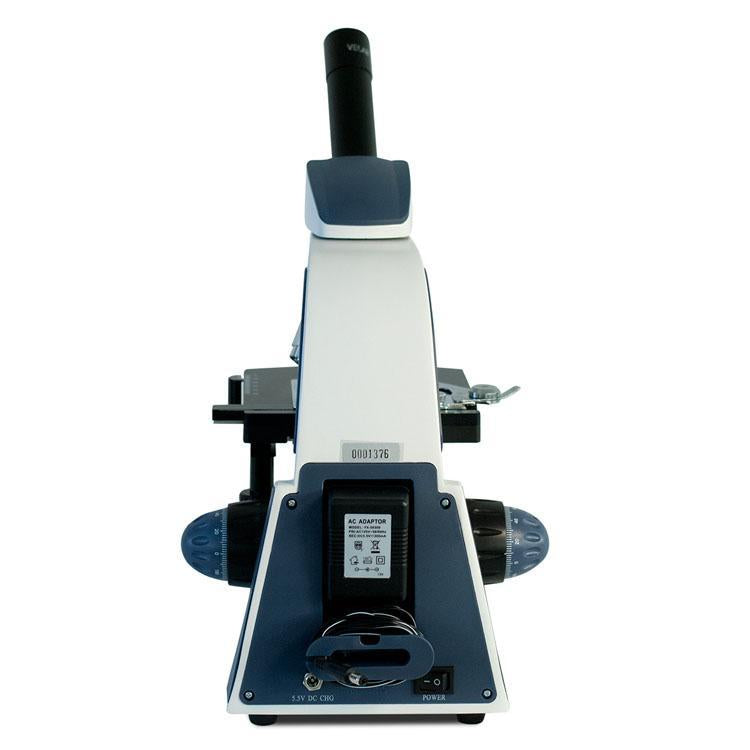

The VE-M5 microscope can fulfill all kinds of basic and advanced procedures. Its area of application is not limited to education, it can be applied in clinical laboratories for observation of blood samples, parasite identification and urinary sediment sample observation, due to its immersion objective. Includes a rear cable-winding reel for the power adapter. Recommended for educational use that does not require comprehensive observations such as viewing the basic elements of a cell, samples of plant tissues, protozoa, filamentous fungi, sperm, etc.
Product Specifications:
EYEPIECE |
WF 10X/18 mm with block screw. |
HEAD |
Monocular head, 45° inclined, 360° rotatable. |
NOSEPIECE |
Quadruple nosepiece with click-stops. |
OBJECTIVES |
4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification. |
STAND |
Stative, robust and reinforced with epoxy paint finish. |
STAGE |
Two-layer stage, with X-Y coaxial movement, 5.11” x 5.11”, vernier, millimeter scale, clamp and height adjustment with stop. |
CONDENSER |
Abbe, N.A. 1.25 with height adjustment screw. |
DIAPHRAGM |
Iris type with filter holder. |
FOCUSING |
Coarse and fine anti-slip control knob with tension adjustment. |
ILLUMINATION |
LED with intensity control |
WEIGHT |
12.32 lb / 5.58kg |
DIMENSIONS |
10.04” x 12.99” x 12.99” / 255 x 329 x 329 mm |
POWER SUPPLY |
Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter. |
Accesories included:
