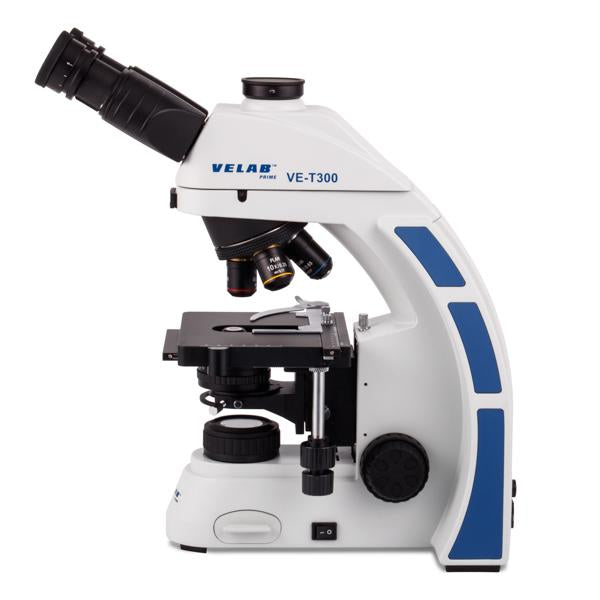

Adaptable to the needs of the user, the VE-T300 offers optional configurations for several applications. Its trinocular head allows the adaptation of digital devices (not included) for image and video documentation.
Product Specifications:

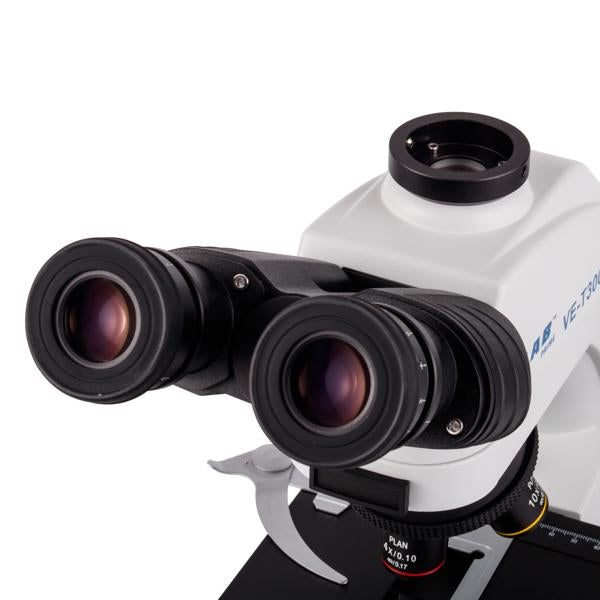

| EYEPIECES: | PL 10X/20 mm 360° rotary, with rubber eyecups and ± 5 mm diopter adjustment in both eyepieces. |
| HEAD: | Triocular Gemel type, 30° inclined with interpupillary distance adjustment between 50-75 mm/1.96”- 2.95”. |
| NOSEPIECE: | Quadruple nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings. |

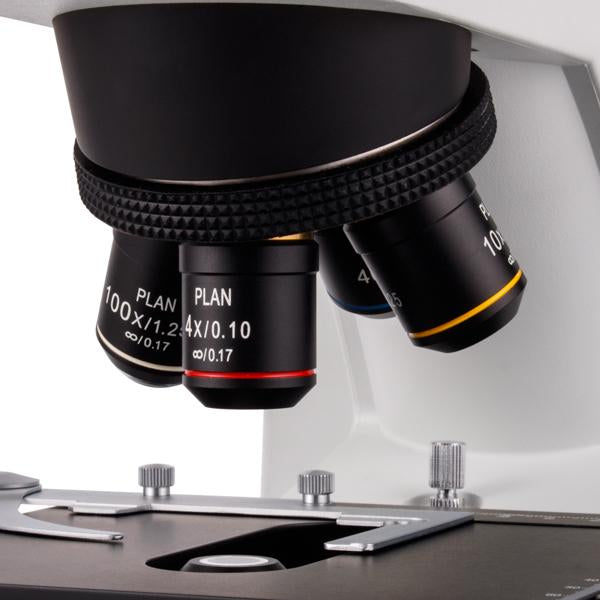

| OBJECTIVES: | 4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected plan achromatic optics and color ring for easy identification. |
| STAND: | Stative, robust and reinforced with epoxy paint finish. |
| STAGE: | Double plate with X-Y coaxial movement, 5.90” x 5.51”, vernier, millimeter scale (3.46” x 2.36”), clamp and height adjustment with stop. |

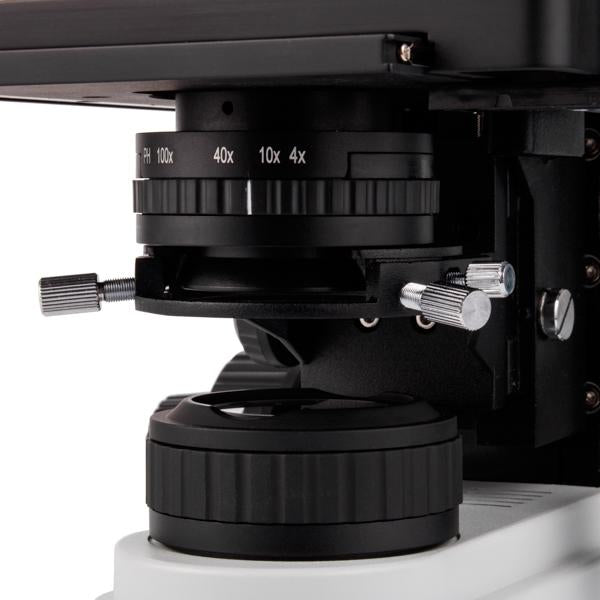

| CONDENSER: | Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for optional configurations (not included). |
| DIAPHRAGM: | Iris with filter holder. |
| FOCUSING: | Coarse and fine anti-slip control knob with precision 0.001 mm, 200 graduations per micrometer turn (0.2 mm) and tension adjustment. |
| ILLUMINATION: | 3W Kohler LED with intensity control and field diaphragm in the lamp. |
| POWER SUPPLY: | 110-240V, 50/60 Hz, AC Adapter. |
| DIMENSIONS: | 8.07″ x 17.71″ x 14.96″ |
Accessories included:
Accessories not included:
