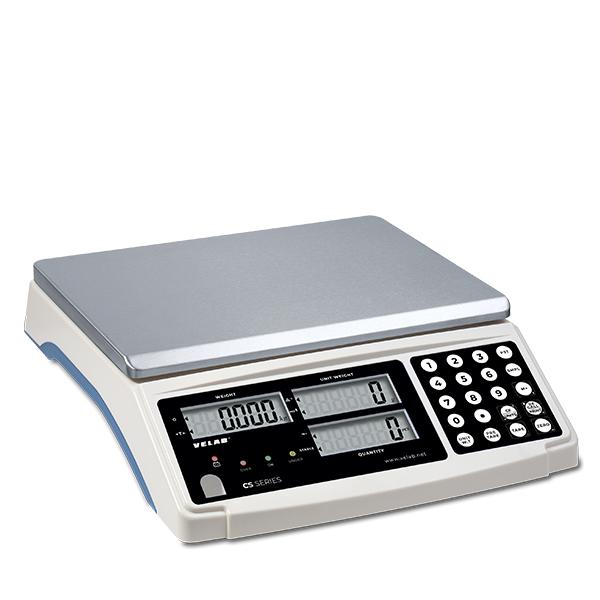

The CS series counting scale is ideal for industrial and manufacturing parts counting applications. CS series counting scales are conveniently portable, offer a large stainless steel pan, three large high contrast LCD displays showing weight, unit weight and count, and are simple to use. The CS series is ideal for packaging, inventory counting, small parts manufacturing, shipping and receiving, warehousing, and other production facilities.
Product Specifications:
MODEL
|
VE-CS6S
|
VE-CS15S
|
VE-CS30S
|
CAPACITY:
|
6 kg / 12 lb |
15 kg / 30 lb |
30 kg / 60 lb
|
READABILITY
|
0.2 g / 0.0005 lb |
0.5 g / 0.001 lb |
1 g / 0.002 lb
|
REPEATABILITY
|
±0.4 g
|
±1 g
|
±2 g
|
LINEARITY
|
±0.4 g |
±1 g |
±2 g
|
Weighing units
|
g, kg, lb
|
Calibration
|
External
|
Pan Size
|
300 x 232mm / 11.8” x 9.1”
|
Stabilization Time
|
2 seconds
|
Interface
|
RS232
|
Display
|
LCD, digit height 20mm / 0.787”
|
Housing
|
ABS plastic
|
Operating Environment
|
-10° to 40°C / 14° to 104°F
|
Overall Dimensions
|
360 × 300 x 110mm /14.2” x 12” x 4.3”
|
Weight:
|
3.7 kg / 8.157 lb
|
Power Supply:
|
110/240V, 50/60 Hz AC Adapter and rechargeable battery
|
Accessories included:
- Power adapter
- Clear protective cover
- Rechargeable battery
1-year limited warranty
