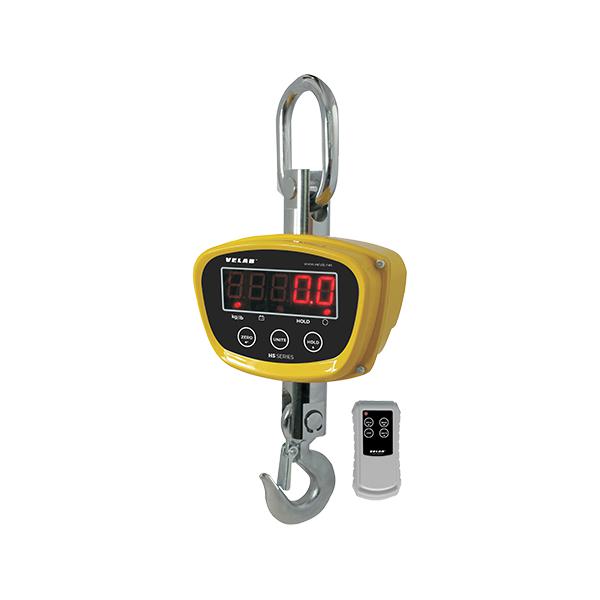

The HS crane scale offers a strong, safe solution for weighing heavy, suspended loads in industrial settings such as shipping and production operations.
HS scales are ruggedly constructed with cast-aluminum magnesium indicator housing, chrome-plated steel hook, safety catch and oversized swivel shackle and bolt. The hook and shackle rotate, giving complete flexibility.
A remote control allows scale operation from a safe distance. LED display readings are highly visible in any lighting conditions, including outdoors. HS scales are suitable for heavy duty suspension weighing tasks and can be used for measuring the weight of containers, commercial fishing nets, pallets and crates.
Product Specifications:
|
MODEL
|
VE-HS500
|
VE-HS1500
|
VE-HS2000
|
|
CAPACITY:
|
500 kg / 1000 lb |
1500 kg / 3000 lb |
2000 kg / 4000 lb |
|
READABILITY
|
0.1 kg / 0.2 lb |
0.2 kg / 0.5 lb |
0.5 g / 1 lb |
|
REPEATABILITY
|
±0.1 kg / 0.2 lb
|
±0.2 kg / 0.5 lb
|
±0.5 kg / 1 lb
|
|
LINEARITY
|
±0.2 kg / 0.4 lb |
±0.5 kg / 1 lb |
±1 kg / 2 lb |
|
Weighing units:
|
Kg, lb
|
|
Calibration:
|
External
|
|
Stabilization Time:
|
5 seconds
|
|
Interface:
|
N/A
|
|
Display:
|
LED, digit height 25mm / 1”
|
|
Housing:
|
Die-cast aluminum
|
|
Operating Environment:
|
5° to 40°C / 41° to 104°F
|
|
Overall Dimensions:
|
195 x 130 x 450mm / 7.7” x 5.1” x 17.7”
|
|
Weight:
|
4.8kg / 10.6lb
|
|
Power Supply:
|
110/240V, 50/60 Hz AC Adapter and rechargeable battery
|
Accessories included:
- Power adaptor
- Remote control
1-year limited warranty
