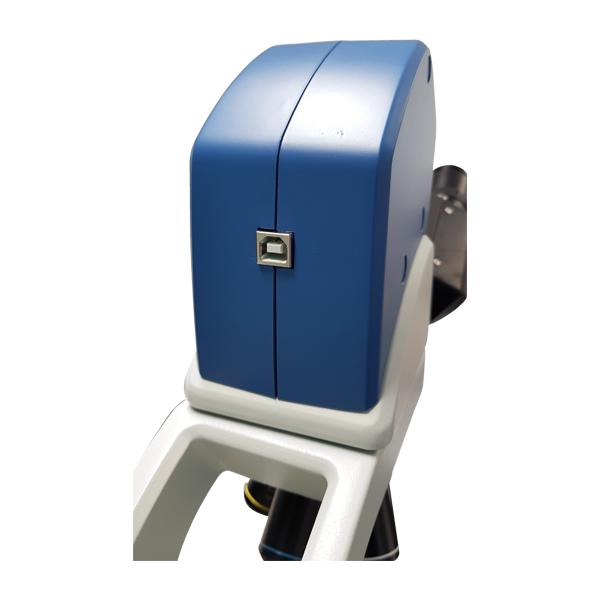

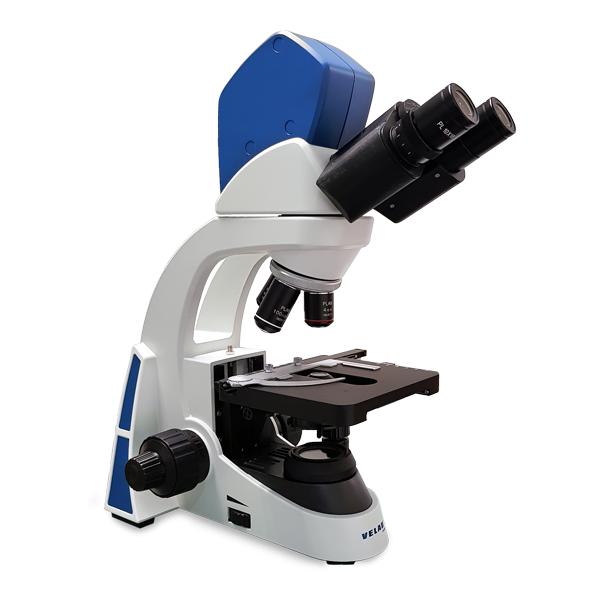

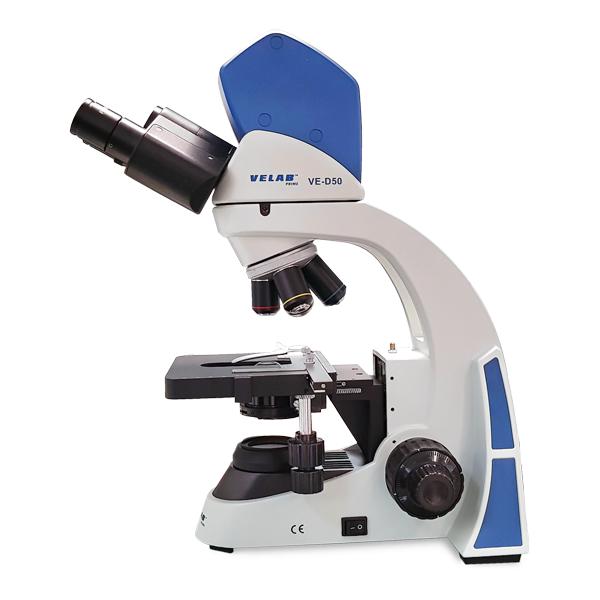

Digital microscope ideal for all kinds of advanced techniques. It has all the properties of a professional biological microscope, as well as being equipped with a 3.0 MPX digital camera. Used for research, higher education and diagnostic purposes in clinical laboratories.
Its stage provides fine and smooth movement control, providing precise orientation, a useful feature during histology and cytology tests. It has optical components of excellent quality and long useful life LED lighting. The diopter adjustment offers diopter adjustment
Product Specifications:
| EYEPIECES | PL 10X/18mm with ± 5 mm diopter adjustment in one eyepiece. |
| HEAD | Binocular Siedentopf type, 30° inclined with interpupillary distance adjustment between 50 – 75 mm / 1.96”- 2.95”. |
| NOSEPIECE |
Quadruple nosepiece with anti-slip ring and click-stops., mounted on high-tension ball bearings. |
| OBJECTIVES | 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics and color ring for easy identification. |
| STAND | Stative, robust and reinforced with epoxy paint finish. |
| STAGE | Two-Layer stage with X-Y coaxial movement, 5.51” x 5.19”, vernier, millimeter scale (3.46” x 2.36”), clamp and height adjustment with stop. |
| CONDENSER | Abbe, A.N. 1.25 with height adjustment screw. |
| DIAPHRAGM | Iris with filter holder. |
| FOCUSING | Coarse and fine anti-slip control knob with fine 0.002 mm precision and tension adjustment. |
| ILUMINATION |
3W LED with variable intensity control. |
| POWER SUPPLY |
110-240V, 50/60 Hz, AC Adapter. |
Accessories included:
10 -years limited warranty
