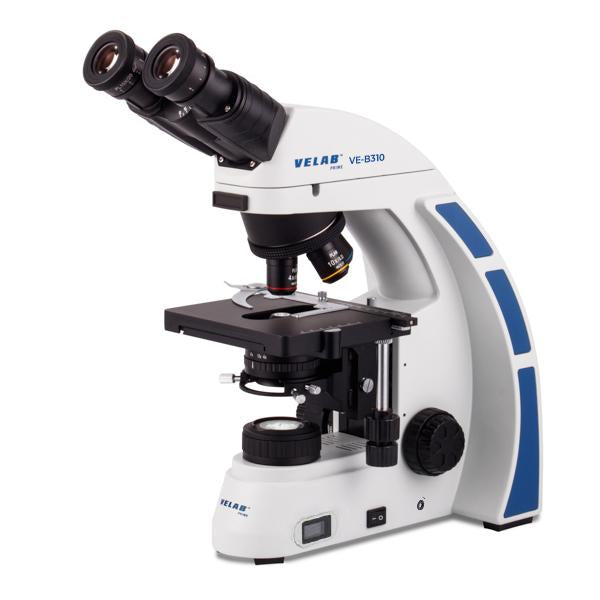

Biological microscope designed for professional use. Ideal for the identification and analysis of biological substances and cultures in microbiology, biology, medicine and pathology. .
The VE-B310 is a great tool for research, higher education and routine work in clinical laboratories.
It is highly adaptable to the needs of the user, it has the possibility of a large number of configurations, compatible with a phase contrast kit, dark field, simple polarization and LED fluorescence lighting.
Product Specifications:
|

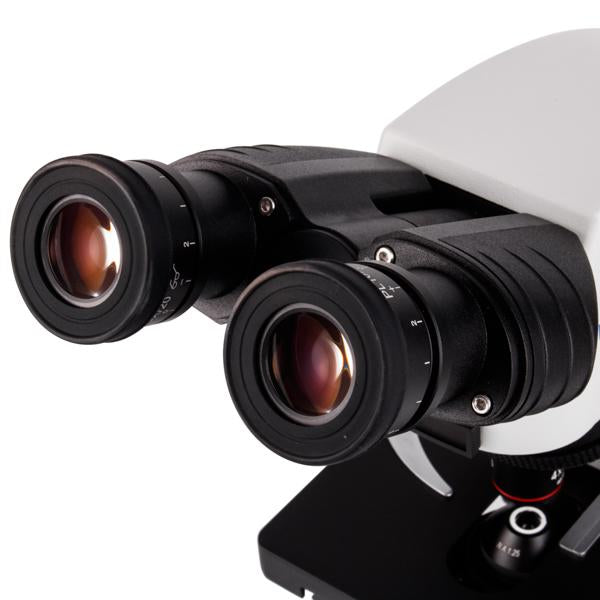

EYEPIECES |
PL 10X/20 mm 360° rotary, with rubber eyecups and ± 5 mm diopter adjustment in both eyepieces. |
|
HEAD |
Binocular Gemel type, 30° inclined with interpupillary distance adjustment between 50-75 mm/1.96”- 2.95”. |
|
NOSEPIECE |
Quadruple nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings. |
|

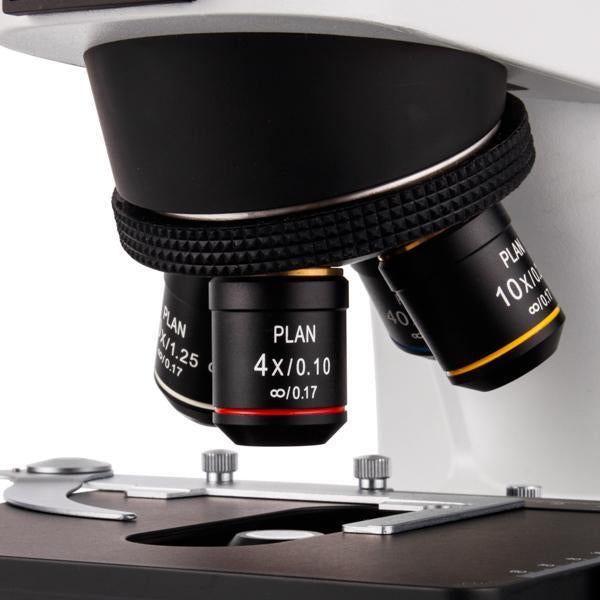

OBJECTIVES |
4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected plan achromatic optics and color ring for easy identification. |
|
STAND |
Stative, robust and reinforced with epoxy paint finish. |
|
CONDENSER |
Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for optional configurations (not included). |
|
STAGE |
Two-Layer stage with X-Y coaxial movement, 5.90” x 5.51”, Vernier, millimeter scale (3.46” x 2.36”), clamp and height adjustment with stop. |
|
DIAPHRAGM |
Iris with filter holder. |
|
FOCUSING |
Coarse and fine anti-slip control knob with precision 0.001 mm, 200 graduations per micrometer turn (0.2 mm) and tension adjustment. |
|

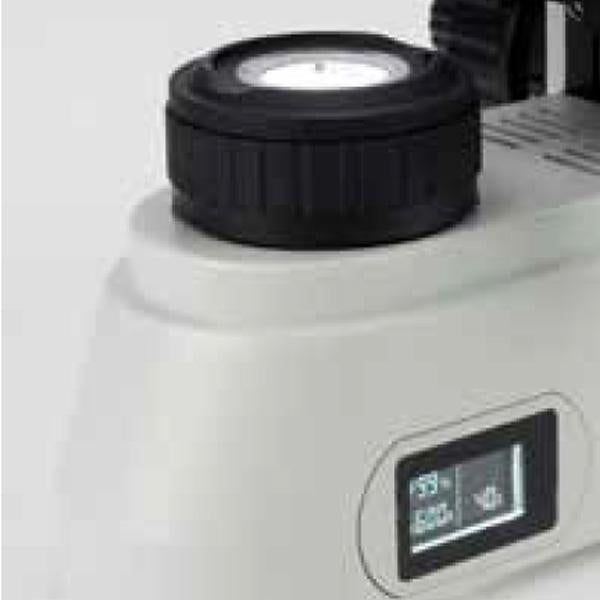

ILUMINATION |
Kohler 3W LED (3000K-5600K), light intensity continuously adjustable; LCD beside the frame to show the color temperature, with intensity control and field diaphragm in the lamp. |
|
POWER SUPPLY |
110-240V, 50/60 Hz, AC Adapter. |
Accessories included:
