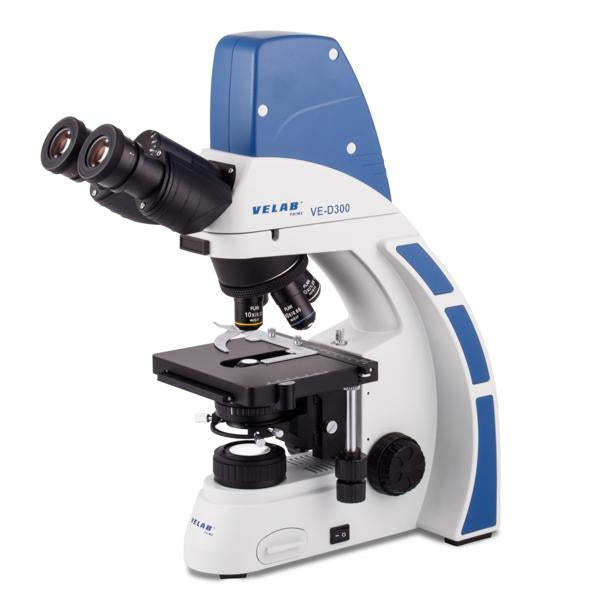

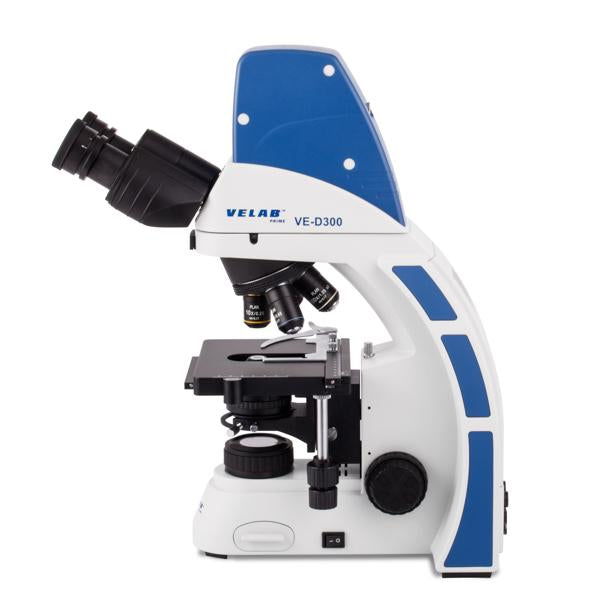

The VE-D300 digital microscope was designed for professional use. It has all the virtues of a professional biological microscope, in addition to being equipped with a 5.0MP digital camera. It includes an easy-to-use software compatible with Windows operating systems, practical for editing, storing and observing images in real time. It can perform measurements in a wide range of units. Compatible with Windows 10 and lower operating systems.
The VE-D300 is ideal for the identification and analysis of biological samples in areas such as biology, medicine, pathology and microbiology. Adaptable to the needs of the user, the VE-D300 offers optional configurations for several applications.
Product Specifications:
| EYEPIECES: | PL 10X/20 mm 360° rotary with rubber eyecups and ± 5 mm diopter adjustment in both eyepieces. |
| HEAD: | Binocular Gemel type, 30° inclined with interpupillary distance adjustment between 50 – 75 mm/1.96”- 2.95” and integrated 5.0MP digital camera. |
| NOSEPIECE: | Quadruple nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings. |
| OBJECTIVES: | 4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected plan achromatic optics and color ring for easy identification |
| STAND: | Stative, robust and reinforced with epoxy paint finish. |
| STAGE: | Two-Layer stage with X-Y coaxial movement, 5.90” x 5.51”, vernier, millimeter scale (3.46” x 2.36”), clamp and height adjustment with stop. |
| CONDENSER: | Abbe, N.A. 1.25 with height adjustment screw. Equipped with an adapter for optional configurations (not included). |
| DIAPHRAGM: | Iris with filter holder. |
| FOCUSING: | Coarse and fine anti-slip control knob with 0.001 mm precision, 200 graduations per micrometer turn (0.2 mm) and tension adjustment. |
| ILLUMINATION: | 3W Kohler LED with intensity control and field diaphragm in the lamp. |
| POWER SUPPLY: | 110-240V, 50/60 Hz, AC Adapter. |
| DIMENSIONS: | 8.07″ x 18.42″ x 14.96″ |
Accessories included:
Accessories not included:
**10-years limited warranty
