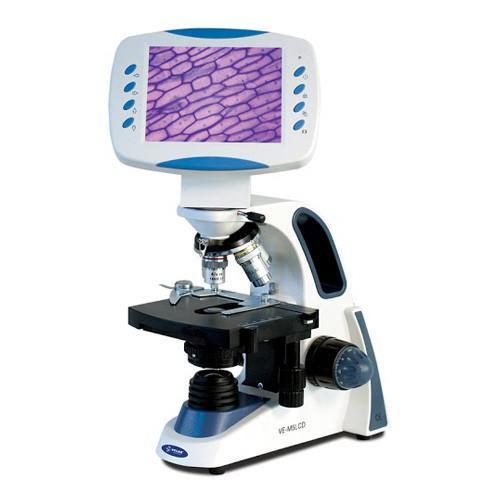

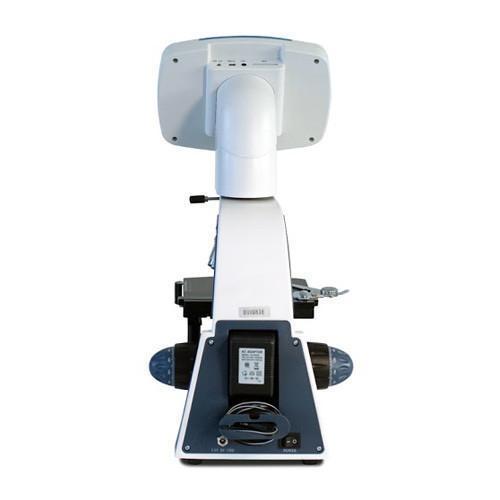

The VE-M5LCD microscope can fulfill all kinds of basic and advanced procedures. Ideal for education, as well as routine work in clinical laboratories.
Equipped with an LCD screen and a 2.0MP camera (included). The VE- M5LCD is an ideal device for teaching, analysis and group observations as well as for basic and intermediate research.
The VE-M5LCD includes easy-to- use software compatible with Windows operating systems to analyze and store images on your computer.
Product Specifications:
| HEAD: |
6” LCD screen (640 x 480p of resolution) with 3.0MP camera, SD card slot, AV and USB ports. |
| NOSEPIECE: |
Quadruple nosepiece with click-stops. |
| OBJECTIVES: |
4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification. |
|
STAND: |
Stative, robust and reinforced with epoxy paint finish. |
| STAGE: |
Two-Layer stage with X-Y coaxial movement, 5.11” x 5.11”, vernier, millimeter scale, clamp and height adjustment with stop. |
| CONDENSER: |
Abbe, N.A. 1.25 with height adjustment screw. |
| DIAPHRAGM: |
Iris with filter holder. |
| FOCUSING: |
Coarse and fine anti-slip control knob with tension adjustment. |
| ILLUMINATION: |
LED with intensity control. |
| POWER SUPPLY: |
Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. LCD screen: 110-240V, 50/60 Hz AC adapter. |
| DIMENSIONS: |
7.99″ x 15.94″ x 9.88″ |
Accesories included:
- 2 AC/DC adapters.
- Adapter cable reel device.
- Blue filter.
- Dust cover.
- Immersion oi.
- Operation manual.
- Software CD.
**10-years limited warranty.
