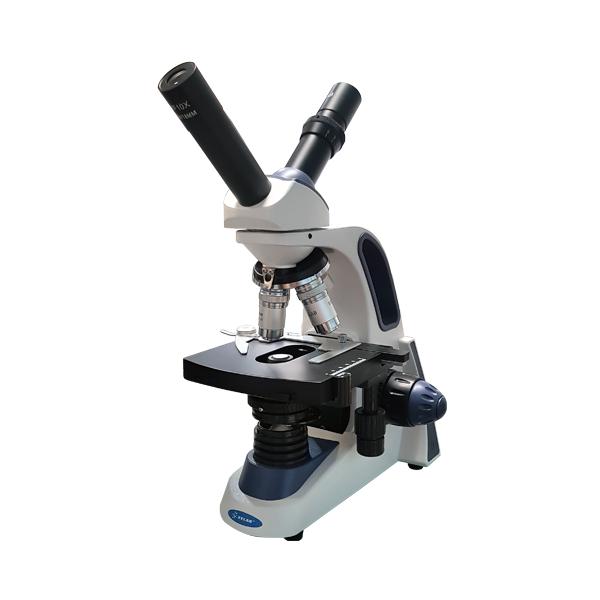

The VE-M5DTH dual view compound microscope is ideal for 2 simultaneous observations. Its area of application is not limited to mid and upper level education environments, the VE-M5DTH can also be applied to meet the basic needs in clinical laboratories. It features LED illumination and a quadruple nosepiece (with immersion objective).
Product Specifications:
| EYEPIECES: |
WF 10x/18 mm with block screw.
|
| HEAD: |
Double Monocular head, 45° inclined head, 360° rotatable. Interpupillary distance adjustment between 48 - 75 mm / 1.88” - 2.95” |
| NOSEPIECE: |
Quadruple nosepiece with click-stops. |

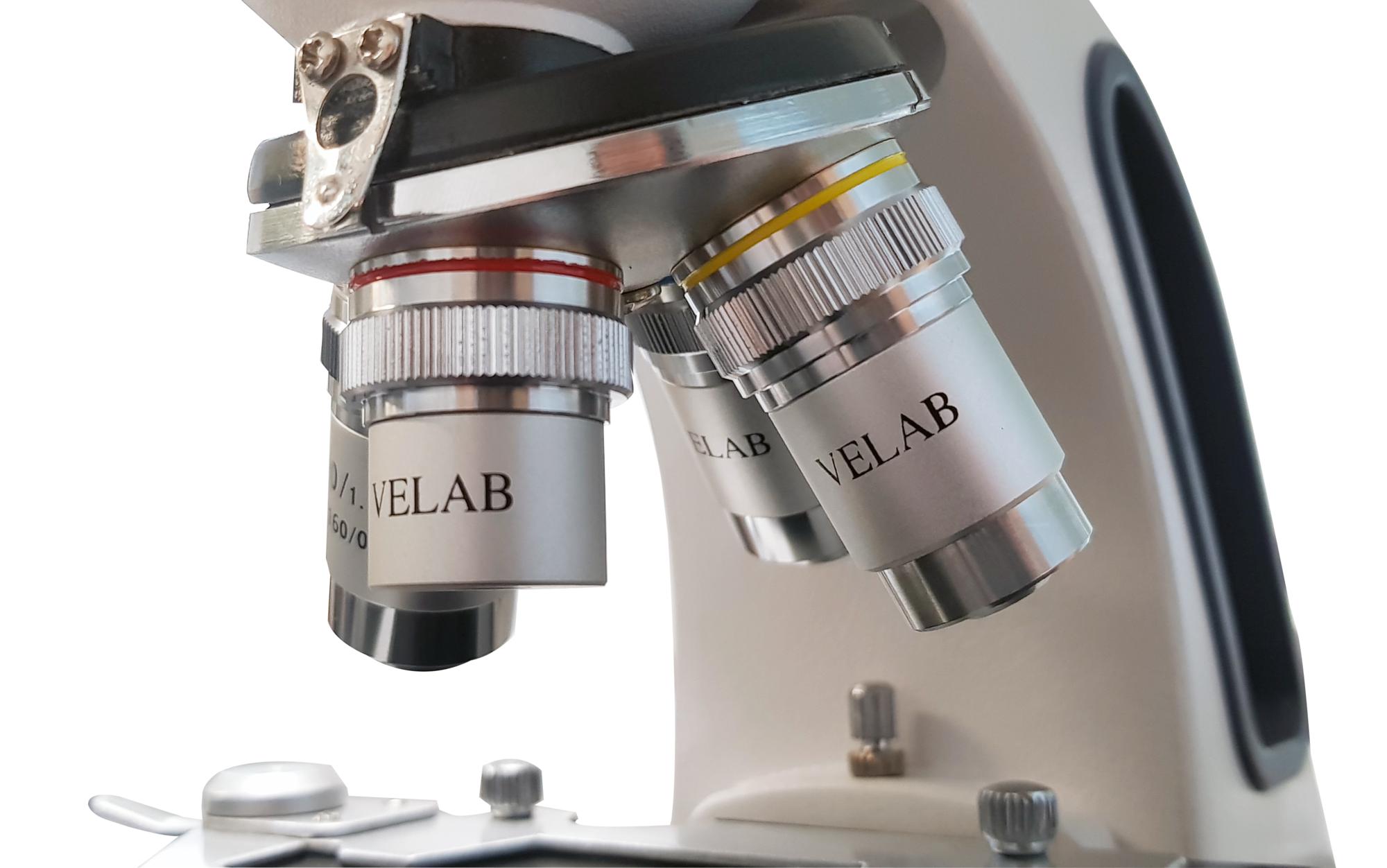

| OBJECTIVES: |
4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification. |
| STAND: |
Stative, robust and reinforced with epoxy paint finish |
| STAGE: |
Two-layer stage, with X-Y coaxial movement, 5.11” x 5.11”, vernier, millimeter scale, clamp and height adjustment with stop. |

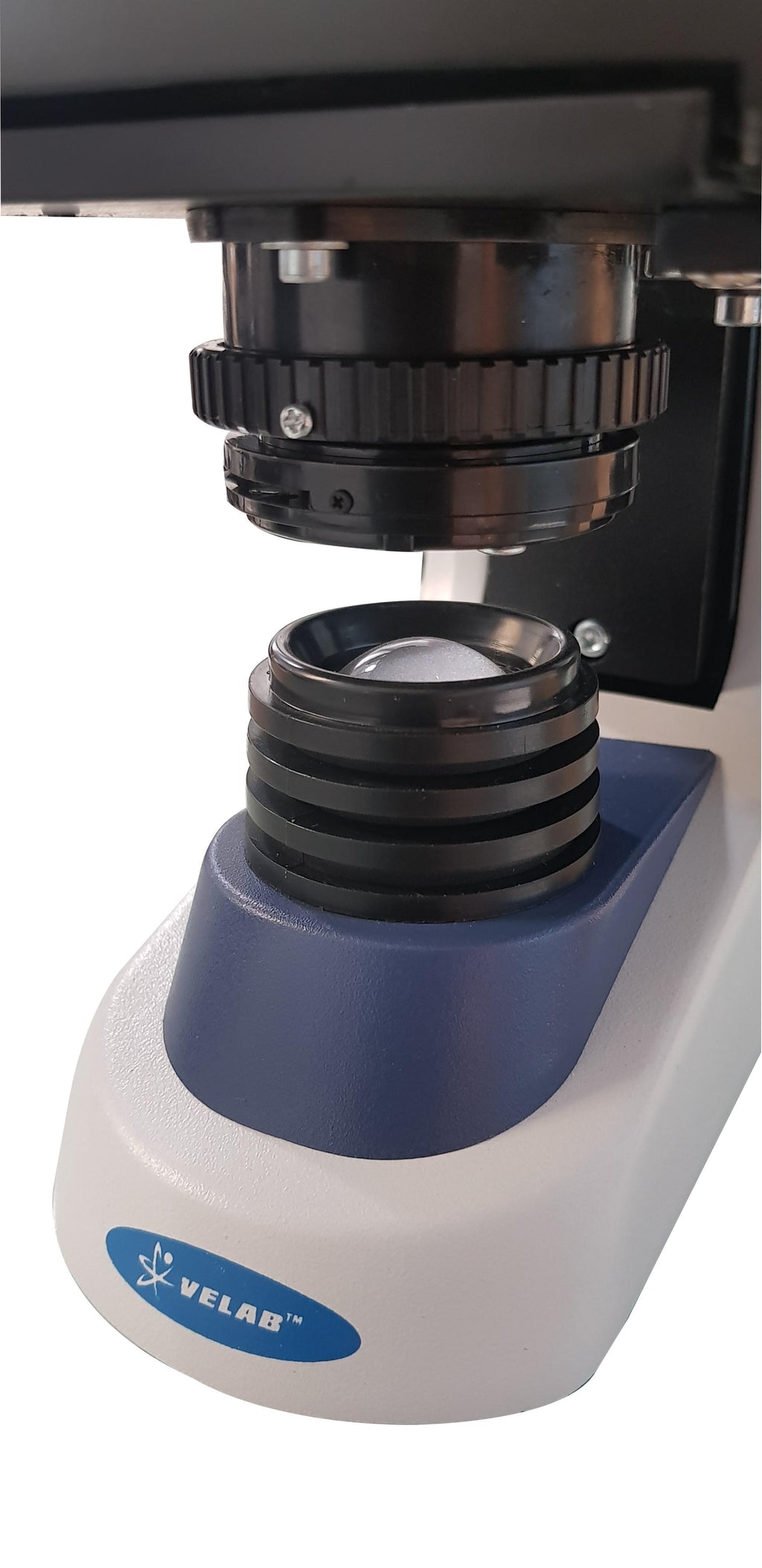

| CONDENSER: |
Abbe, A.N. 1.25 with height adjustment screw. |
| DIAPHRAGM: |
Iris with filter holder. |
| FOCUSING: |
Coarse and fine anti-slip control knob with tension adjustment. |
| ILLUMINATION: |
LED with intensity control. |
| POWER SUPPLY: |
Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter. |
Accesories included:
- AC/DC adapter.
- Dust cover.
- Blue filter.
- Adapter cable reel device.
- Immersion oil.
