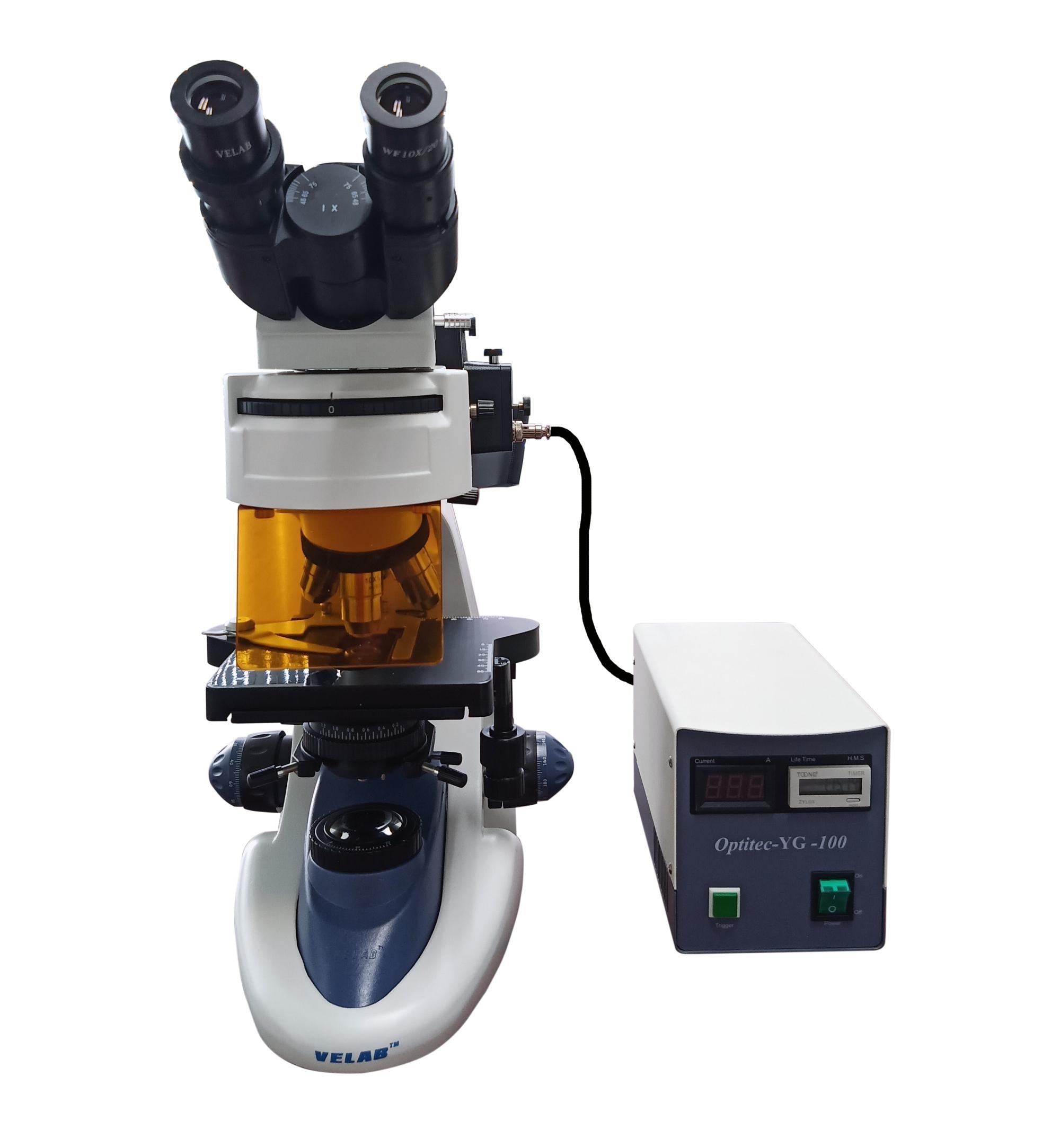

Trinocular fluorescence microscope with yellow-green observation effects on B-band with applicable ranges for FITC, acridine orange and auramine O. G-band red color with applicable ranges for TRITC, rhodamine B200 and propidium iodide. The VE-146 is used in the diagnosis of diseases, biochemistry, neurology, molecular biology, genetics, microbiology and research.
.Product Specifications:
| EYEPIECES: | WF 10x/22mm with rubber eyecups and diopter adjustment on one eyepiece. |
| HEAD: | Triocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88” - 2.95”. Adapted to fluorescence illumination and filter box with B, G and brightfield position. Includes polarized 360 ° rotation. |
| NOSEPIECE: | Quadruple with anti-slip grip and click-stops. |
| OBJECTIVES: | 4X, 10X, 40X (retractable) and 100X (retractable) oil immersion with infinity corrected achromatic optics, metallic finish and color ring for easy identification. |
| STAND: | Stative, robust and reinforced with epoxy paint finish. |
| STAGE: | Double plate with coaxial X-Y movement, 150 x 132 mm / 5.90” x 5.19”, vernier, millimeter scale, height adjustment with clamp and stop. |
| CONDENSER: | Abbe, A.N. 1.25 with height adjustment screw. |
| DIAPHRAGM: | Iris with filter holder. |
| FOCUSING: | Coarse and fine anti-slip control knob with tension adjustment. |

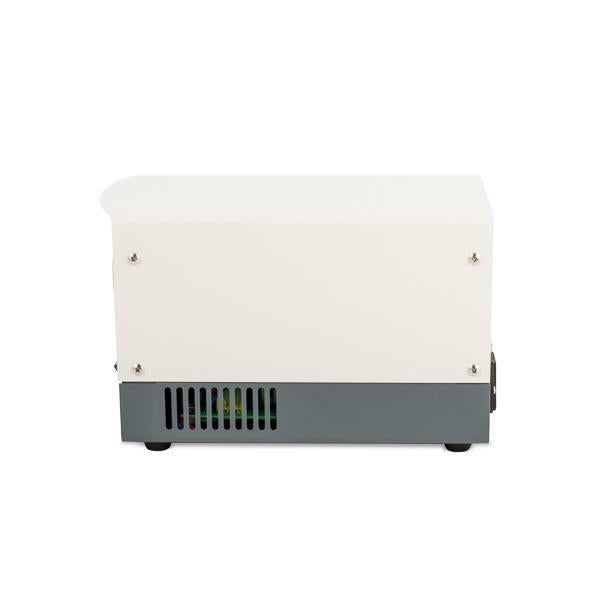

| ILLUMINATION: | Kohler halogen 12V/30W with field diaphragm lamp and epi- fluorescence using 100W mercury vapor with variable intensity control. |
| POWER SUPPLY: | 110-240V, 50/60 Hz AC adapter. |
| DIMENSIONS: | 10.43″ x 22.63″ x 19.09″ |
Accessories included:
**10-years limited warranty
