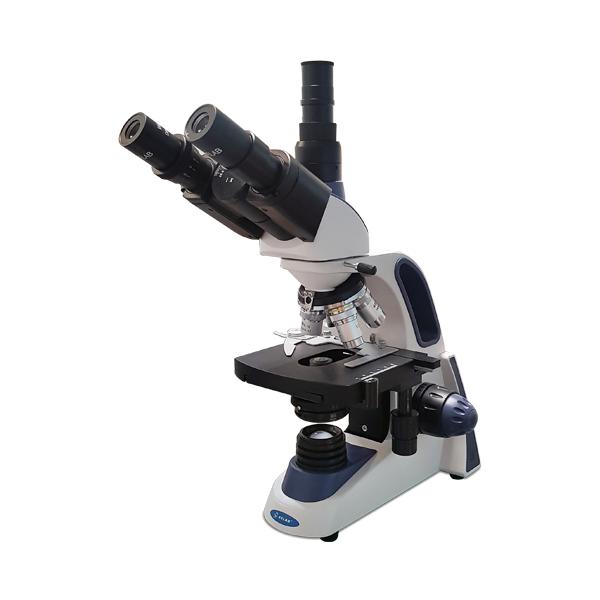

The VE-T1 microscope is equipped with a trinocular head, which is ideal for the integration of imaging, video, or Tablet devices. The VE-T1 is suitable for research, all types of laboratory diagnosis, as well as in mid and upper level education environments.
It has LED type lighting and a quadruple nosepiece (with immersion objective).
Specifications:
| EYEPIECES: | WF 10X/22mm with rubber eyecups and diopter adjustment on one eyepiece. |
| HEAD: | Triocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75 mm / 1.88” - 2.95”. |
| NOSEPIECE: | Quadruple nosepiece with anti-slip grip and click-stops. |

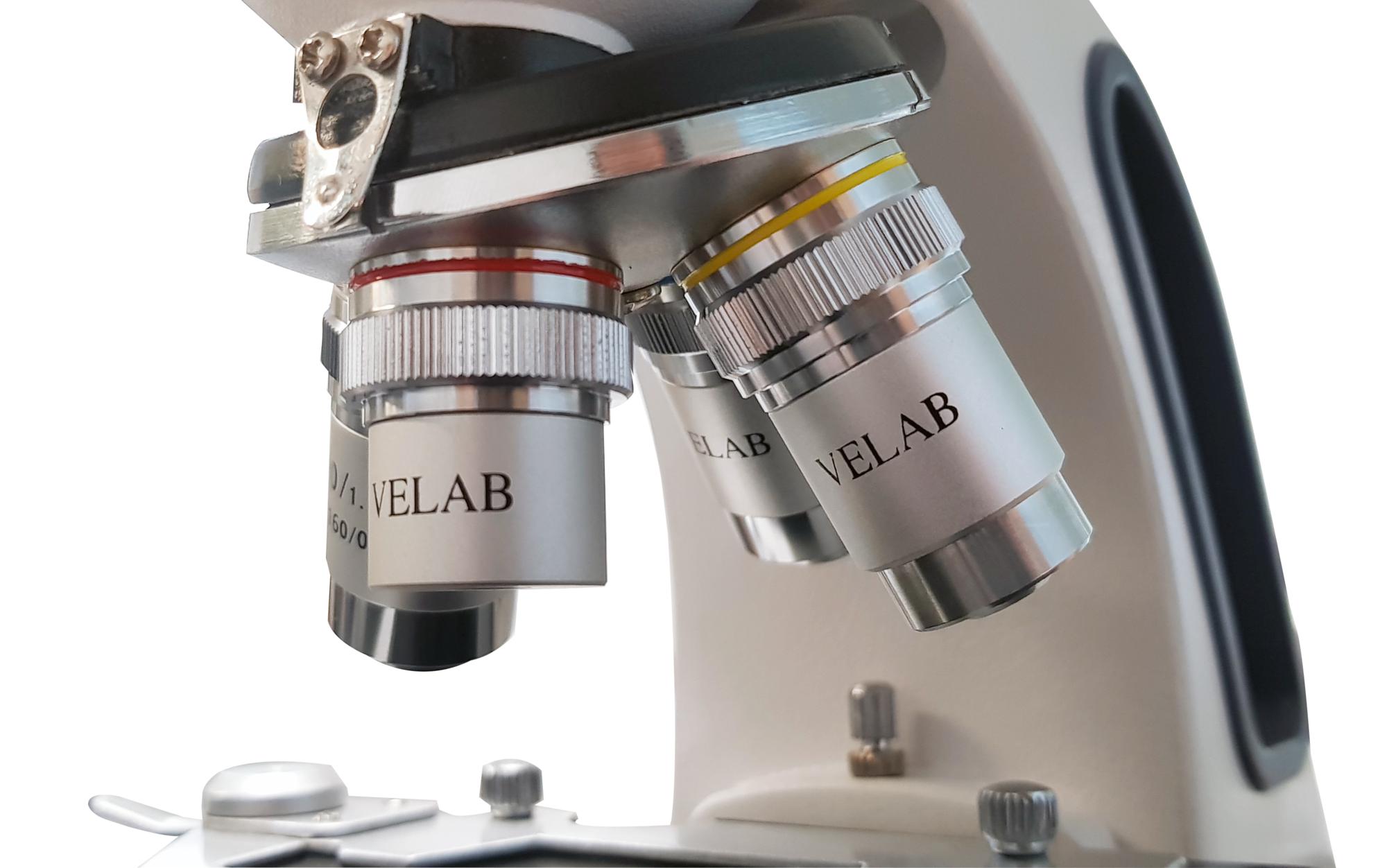

| OBJECTIVES: | 4X, 10X, 40X (S) and 100X (S) (oil), infinity corrected plan achromatic optics, metallic finish and color ring for easy identification. |
| STAND: | Stative, robust and reinforced with epoxy paint finish. |
| STAGE: | Two-Layer stage with X-Y coaxial movement, 130 x 130 mm/ 5.90” x 5.19”, vernier, millimeter scale, clamp and height adjustment with stop. |
| CONDENSER: | Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included). |
| DIAPHRAGM: | Iris with filter holder. |
| FOCUSING: | Coarse and fine anti-slip control knob with tension adjustment. |
| ILLUMINATION: | Kohler LED with variable intensity control and field diaphragm in the lamp. |
| POWER SUPPLY: | Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter. |
Accessories included:
