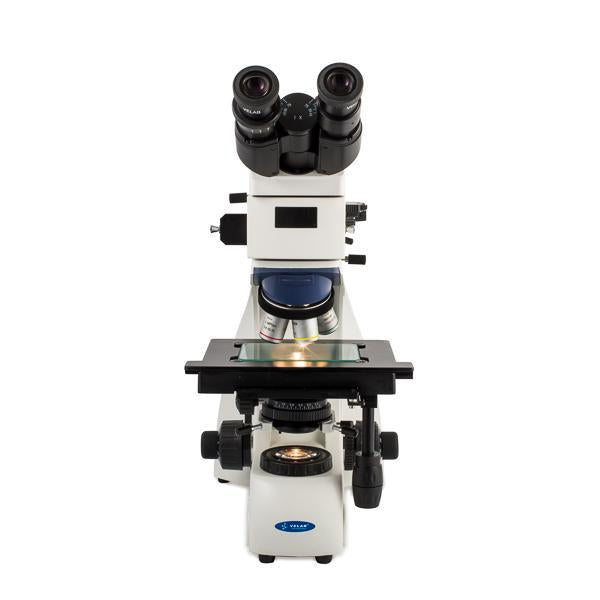

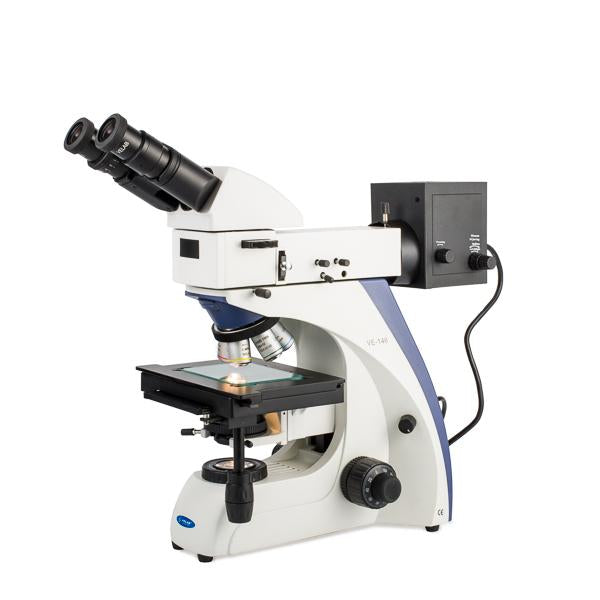

The VE-146 metallographic microscope is ideal for materials science, it includes transmitted and incident light with polarization.
Ideal for observing metals, crystals, powders and translucent materials.
.Product Specifications:
| EYEPIECES: | WF 10x/22mm with rubber eyecups and diopter adjustment on one eyepiece. |
| HEAD: | Binocular Siedentopf type, 30° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88” - 2.95”. Adapted to epi-Kohler illumination and filter box with two positions. Includes polarizer 360 ° rotation. |
| NOSEPIECE: | Quintuple with anti-slip grip and click-stops. |
| OBJECTIVES: | 5X, 10X, 40X (retractable) and 100X (retractable) oil immersion of long work distance with infinity corrected plan achromatic optics, metallic finish and color ring for easy identification. |
| STAND: | Stative, robust and reinforced with epoxy paint finish. |
| STAGE: | Double plate with coaxial X-Y movement, 190 x 150mm / 7.48” x 5.90”, with integrated clear glass surface and height adjustment stop. |
| CONDENSER: | Abbe, A.N. 1.25 with height adjustment screw. |
| DIAPHRAGM: | Iris with filter holder. |
| FOCUSING: | Coarse and fine anti-slip control knob with tension adjustment. |
| ILLUMINATION: | Kohler halogen 12V/30W with variable intensity control and field diaphragm in the lamp. |
| POWER SUPPLY: | 110-240V, 50/60 Hz AC adapter. |
| DIMENSIONS: | 8.66″ x 19.21″ x 22.04″ |
Accessories included:
**10-years limited warranty
